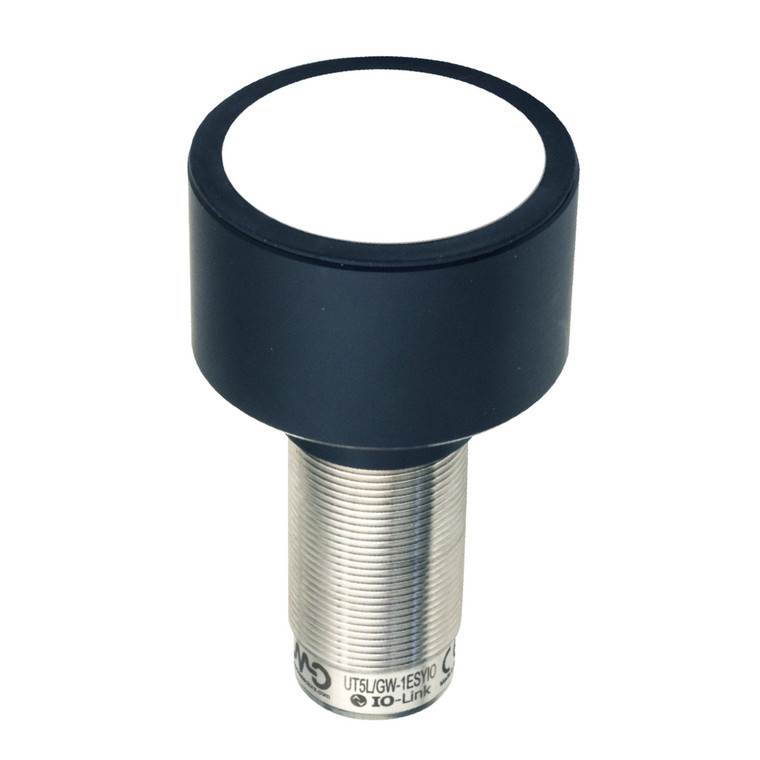

The Datasensing UT5L/G9-1ESY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Encased in a robust AISI316L stainless steel M30 housing, these sensors feature a large shape transducer with a diameter of 61mm, offering an impressive sensing range of 600-8000 mm. The analog output of 0-10 V combined with NPN NO/NC functionality ensures versatile application possibilities.
Equipped with a convenient teach-in button, these sensors allow for easy adjustment of the working area, whether in window mode or object mode, facilitating quick installation. The adjustable hysteresis function and programmable slope enhance resolution and accuracy, making them ideal for level detection tasks.
The UT5L/G9-1ESY Sensors are designed with two multifunction LEDs: an orange LED for adjustment procedures and output type, and a green LED for target alignment, ensuring user-friendly operation. The sensors are built to withstand challenging environments, with plastic and stainless steel housing options, and are compatible with M12 plug connections.
With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, these sensors are engineered for durability and safety. They are suitable for a wide range of industrial applications, offering reliable performance even in harsh conditions.
