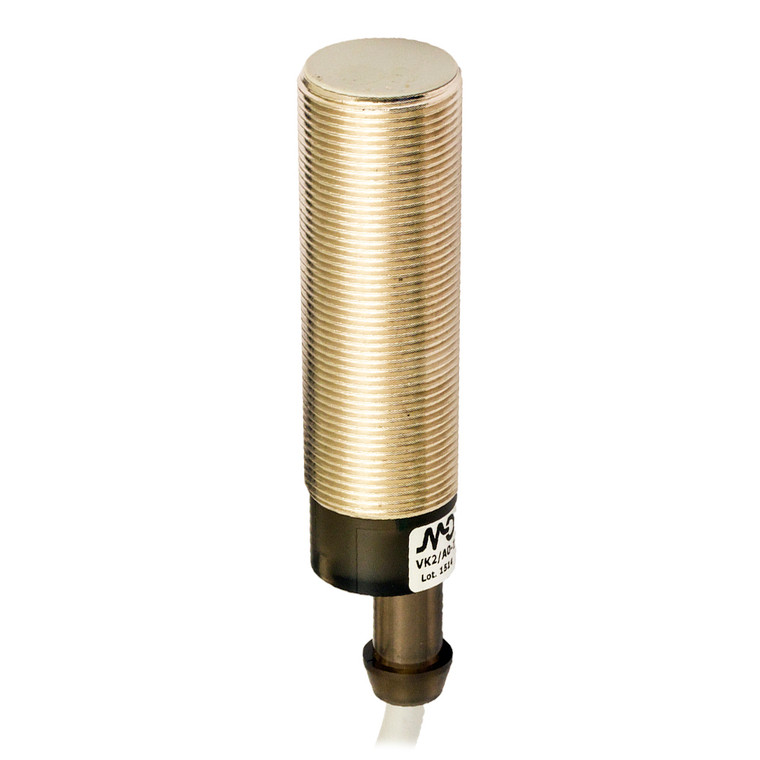

Datasensing VK2/A0-1B86 Sensors
Datasensing
$85.12
The Datasensing VK2/A0-1B86 Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M18 shielded design, these sensors come with a 5-meter PVC cable for flexible installation. With a nominal sensing distance of 5mm and an operating range of 0 to 4.05mm, they are ideal for various industrial applications. The sensors are constructed with a nickel-plated brass housing and a PBT active head, ensuring durability and reliability. They operate on a voltage range of 20 to 250Vac at 50 to 60Hz, with a load current capacity of 5 to 300mA. The sensors are equipped with a yellow LED indicator for output state and have a TRIAC output type with a normally open (NO) function. They are designed to withstand harsh environments, offering IP67 mechanical protection and compliance with IEC 60947-5-2 for EMC compatibility. The sensors also feature a high repeat accuracy of less than 5% and a thermal drift of Sr under 10%, making them suitable for precise applications. Supplied with two M18x1 nuts, these sensors are easy to mount and integrate into existing systems.
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,40 / brass: 0,50 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard flush mount
- Functions:
- Proximity
- Output type:
- TRIAC
- Output Function:
- NO
- Switching frequency:
- 25Hz
- Operating Voltage:
- 20...250Vac/50...60Hz
- Load current:
- 5...300mA
- Leakage current:
- ? 1mA RMS max
- Output voltage drop:
- See curves
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 200ms
- Inrush current:
- 7A (Ton = 10ms)
- Mounting:
- Shielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 76,5mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
