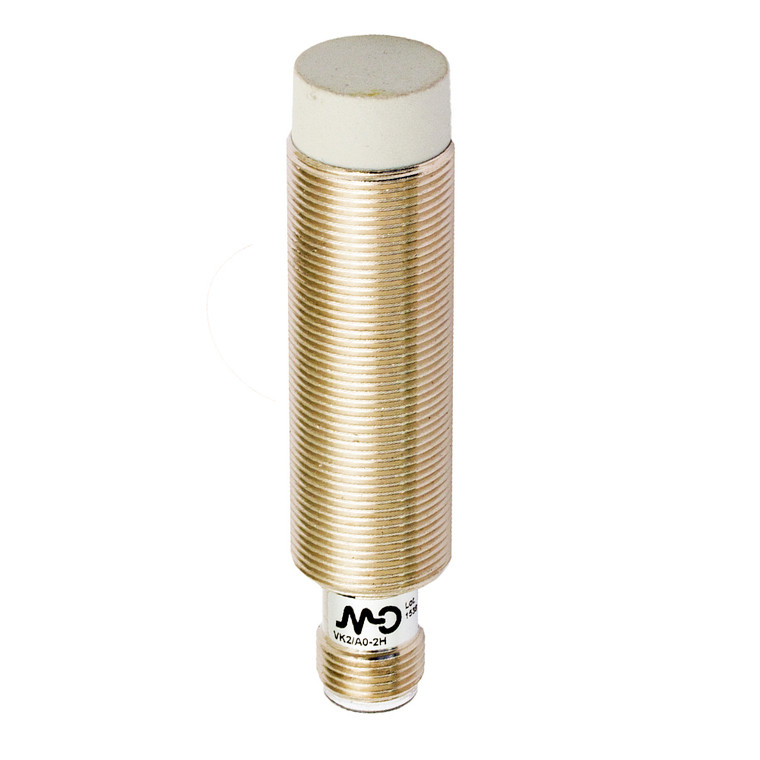

Datasensing VK2/A0-2H Sensors
Datasensing
$83.18
The Datasensing VK2/A0-2H Sensors are high-performance inductive sensors designed for reliable proximity detection. Featuring an M18 unshielded design with a NO connection and M12 plug cable exit, these sensors are ideal for various industrial applications. They offer a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, with a standard target size of 24x24mm FE360. The sensors are equipped with a multivoltage range of 20 to 253 Vac, ensuring versatility in different environments.
Constructed with nickel-plated brass housing and PBT active head material, the VK2/A0-2H sensors are built to withstand harsh conditions, boasting an IP67 protection degree. They are designed to operate efficiently within a temperature range of -25°C to +70°C. The sensors feature a TRIAC output type with a NO output function, supporting a load current of 5 to 300mA and a switching frequency of 25Hz.
Additional features include a yellow LED indicator for output state, a time delay before availability of ? 200ms, and a maximum ripple content of ? 10%. The sensors are also equipped with EMC compatibility according to IEC 60947-5-2 standards and are approved with CE UR certifications. Supplied with two M18x1 nuts, these sensors ensure easy installation and secure mounting with a tightening torque of 25Nm.
With a weight of just 30g and dimensions of M18 x 1 / L = 73.8mm, the Datasensing VK2/A0-2H Sensors are compact yet robust, making them a reliable choice for precise and efficient proximity sensing in demanding industrial settings.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,45 / brass: 0,55 / stainless steel: 0,95
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- TRIAC
- Output Function:
- NO
- Switching frequency:
- 25Hz
- Operating Voltage:
- 20...250Vac/50...60Hz
- Load current:
- 5...300mA
- Leakage current:
- ? 1mA RMS max
- Output voltage drop:
- See curves
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 200ms
- Inrush current:
- 7A (Ton = 10ms)
- Mounting:
- Unshielded
- Weight:
- 30g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
