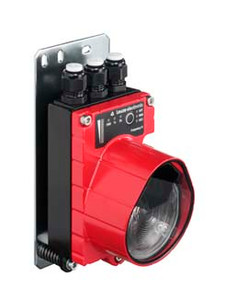

Leuze DDLS 200/120.1-20 Optical data transmission
Leuze
$6,013.00
The Leuze DDLS 200/120.1-20 is an optical data transmission system designed for reliable, contactless data transfer over distances from 200 mm to 120 m, utilizing parallel light axes with infrared LED light source for operation unaffected by reflective surfaces. It supports a transmission speed of 2 Mbit/s with RS 422 and Interbus-S interfaces, powered by 1830 V DC, and features a bar graph/LED display for status indication. Rated IP65 for environmental protection and operational from -5 to 50 °C, it includes M16 terminal connections and mounting plate pre-installation, suitable for industrial automation applications requiring robust, long-range data transmission.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ddls-200-120.1-20/50036290datasheet
- Installation Instructions: https://www.leuze.com/en-int/support/downloads/manuals/ddls-200-120.1-20
- Product Catalog (DDLS 200 Series): https://www.leuze.com/en-int/products/optical-data-transmission/ddls-200
- CAD Data: https://www.leuze.com/en-int/support/downloads/cad/ddls-200-120.1-20
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- RS 422, Interbus-S
- Transmission speed:
- 2?Mbit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 10 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
