Leuze DDLS 200/120.1-50 Optical data transmission
Leuze
$7,748.00

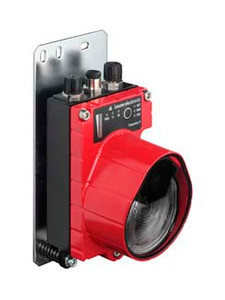

The Leuze DDLS 200/120.1-50 is an optical data transmission device from the DDLS 200 series, designed for wireless transfer of CANopen and DeviceNet fieldbus signals over distances from 200 mm to 120 m using infrared LED light with a narrow 1° transmitter opening angle. It supports transmission speeds of 10 to 1000 kBit/s (CANopen) and 125 to 500 kBit/s (DeviceNet), operates on 1830 V DC supply with one digital input and one output, and features operation of parallel light axes unaffected by reflective surfaces. Housed in a metal enclosure (89.25 x 196.5 x 111.8 mm, 1.245 kg) with IP65 protection, it includes three connections (8-pin and 5-pin), bar graph/LED display, and meets standards including c UL US approval, EN 61000 EMC tests, and EN 60068 environmental tests for shock, vibration, and noise; operational temperature range is -5 to 50 °C.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-120.1-50/50039937
- Product Series Overview: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200-with-2-mbit-s-transmission-rate
- Operating Instructions: https://www.leuze.com/en-us/support/downloads/operating-instructions/ddls-200-120-1-50
- CAD Data: https://www.leuze.com/en-us/support/downloads/cad/ddls-200-120-1-50
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- CANopen, DeviceNet
- Transmission speed:
- 10 ... 1,000 kBit/s
- Transmission speed:
- 125 ... 500 kBit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 5 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
