DDLS 200/120.2-20 Optical data transmission

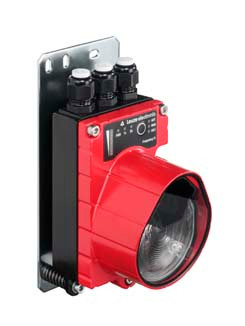

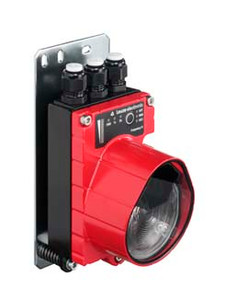

Leuze DDLS 200/120.2-20 Optical data transmission

Leuze
SKU:
DDLS 200/120.2-20
Availability:
Factory stock
$6,013.00
Condition:
New
Current Stock:
Description
The Leuze DDLS 200/120.2-20 is an optical data transmission device from the DDLS 200 series, designed for reliable wireless data transfer over distances of 200 to 120,000 mm using infrared LED parallel light beams with a 1° usable opening angle on the transmitter. It operates at a 2 Mbit/s transmission rate (F2 frequency), supports 18–30 V DC supply voltage, and features a robust metal housing measuring 89.25 x 196.5 x 111.8 mm with a net weight of 1,245 g; it is pre-mounted on a mounting plate and unaffected by reflective surfaces. Typical applications include industrial environments requiring non-contact data transmission, such as Interbus networks in manufacturing and automation setups. Documentation - Technical Datasheet: https://www.leuze.com/en-int/ddls-200-120.2-20/50036291 - Product Manual: https://www.leuze.com/en-int/products/optical-data-transmission/ddls-200/manual/ddls-200-120.2-20 - CAD Data: https://www.leuze.com/en-int/downloads/cad/ddls-200-120.2-20 - Series Catalog: https://www.leuze.com/en-int/products/sensor-solutions/ddls-200-series
Additional Information
Series:
DDLS 200
Special version:
Not influenced by reflective surfaces,Operation of parallel light axes
Working range:
200 ... 120,000 mm
Light source:
LED, Infrared
Transmission frequency:
F2
Opening angle:
1 °
Supply voltage UB:
18 ... 30 V, DC
Number of digital switching inputs:
1 Piece(s)
Number of digital switching outputs:
1 Piece(s)
Type:
RS 422, Interbus-S
Transmission speed:
2?Mbit/s
Number of connections:
3 Piece(s)
No. of pins:
8 -pin
No. of pins:
10 -pin
Dimension (W x H x L):
89.25 mm x 196.5 mm x 111.8 mm
Housing material:
Metal
Net weight:
1,245 g
Type of display:
Bar graph,LED
Ambient temperature, operation:
-5 ... 50 °C
Ambient temperature, storage:
-30 ... 70 °C
Degree of protection:
IP 65
Approvals:
c UL US
Test procedure for EMC in accordance with standard:
EN 61000-6-2:2005,EN 61000-6-4:2001
Test procedure for noise in accordance with standard:
EN 60068-2-64
Test procedure for oscillation in accordance with standard:
EN 60068-2-6
Test procedure for shock in accordance with standard:
EN 60068-2-27,EN 60068-2-29
Customs tariff number:
84718000
ECLASS 5.1.4:
19039001
ECLASS 8.0:
19179090
ECLASS 9.0:
19179090
ECLASS 10.0:
19170506
ECLASS 11.0:
19170506
ECLASS 12.0:
19170506
ECLASS 13.0:
19170506
ECLASS 14.0:
19170506
ECLASS 15.0:
19170506
ETIM 5.0:
EC000515
ETIM 6.0:
EC000515
ETIM 7.0:
EC000515
ETIM 8.0:
EC000515
ETIM 9.0:
EC000515
ETIM 10.0:
EC000515
Datasheet:
View
Brochure:
View
Declaration of Conformity:
View
