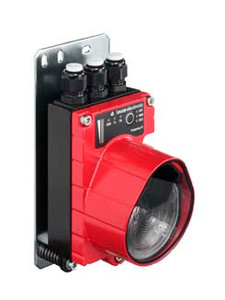

Leuze DDLS 200/200.1-20 Optical data transmission
Leuze
$7,233.00
The Leuze DDLS 200/200.1-20 is an optical data transmission system from the DDLS 200 series, providing a 2 Mbit/s transmission rate for reliable wireless data transfer over distances from 0.2 m to 200 m. It features a narrow 1° transmitter opening angle, supply voltage of 1830 V DC, and supports Interbus-S and RS 422 interfaces via M16 terminal connections, with pre-mounted options on mounting plates for straightforward integration. Designed for industrial automation environments, it enables cable-free data transmission in applications such as material handling, assembly lines, and rotating machinery where physical cabling is impractical.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ddls-200-200.1-20/50036288
- Product Manual: https://www.leuze.com/en-int/manuals/ddls-200-200.1-20
- CAD Data: https://cad.leuze.com/ddls-200-200.1-20
- Interbus Interface Guide: https://www.leuze.com/en-int/support/ddls-200-interbus-guide
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 200,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- RS 422, Interbus-S
- Transmission speed:
- 2?Mbit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 10 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
