Leuze DDLS 200/200.1-40 Optical data transmission
Leuze
$9,541.00

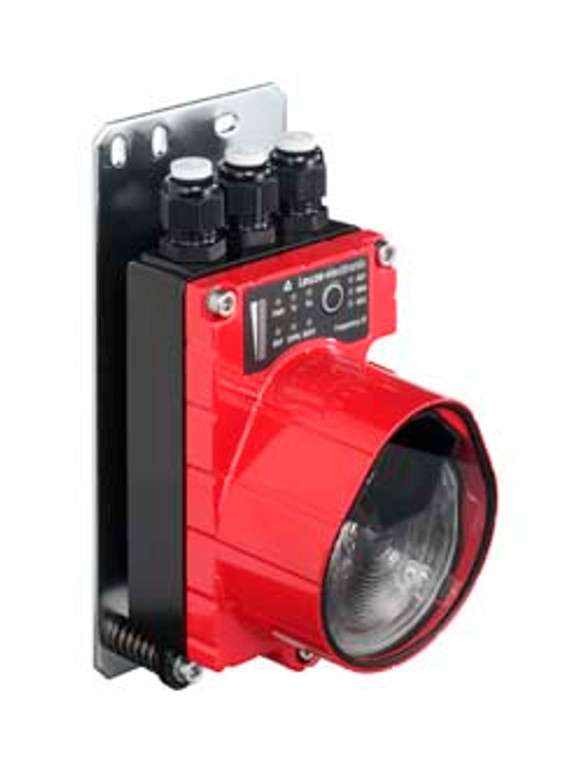

The Leuze DDLS 200/200.1-40 is a contact-free optical data transmission system designed for real-time wireless communication over distances up to 200 m using infrared technology. This paired transceiver system transmits data at 2 Mbit/s via Rockwell DH+/RIO interface, with each unit operating at a different frequency to enable bi-directional communication without signal interference. Operating from 1830 V DC with current consumption of approximately 200 mA (no load) or 800 mA with integrated heating, the system features an infrared LED light source at 880 nm wavelength with a ±0.5° beam spread and is housed in an aluminum diecast enclosure rated IP 65. Ideal for gantry cranes, trolleys, conveyor systems, and transfer cars, the integrated alignment laser simplifies field setup, while the built-in web server enables remote diagnostics and system monitoring.
Documentation
- [Technical Datasheet](https://www.leuze.com/en-int/ddls-200-200.1-40/50036300)
- [Installation and Operating Instructions](https://pim.galco.com/Manufacturer/Leuze/TechDocument/Operating%20Instructions/luze_ddls200_oi.pdf)
- [Product Family Overview DDLS 200 Series](https://www.leuze.com/en-us/products/optical-data-transmission)
- [DeviceNet/CANopen and Interface Specifications](https://www.all4sps.com/mediafiles/Sonstiges/DDLS78.5.pdf)
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 200,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Rockwell DH+/RIO
- Transmission speed:
- 57.6 ... 230.4 kBit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 6 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
