Leuze DDLS 200/200.1-50-M12 Optical data transmission
Leuze
$9,691.00

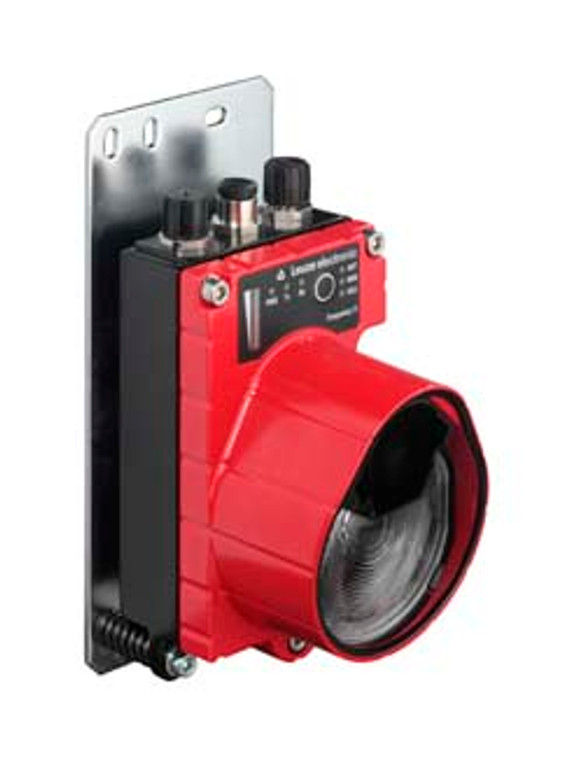

The Leuze DDLS 200/200.1-50-M12 is an optical data transmission system designed for reliable wireless data transfer over distances from 200 mm to 200,000 mm using infrared LED light source with a 1° usable opening angle on the transmitter. It operates on 1830 VDC supply voltage, draws ?200 mA current consumption (without heating), and features an M12 connector for straightforward integration in industrial environments. Typical applications include fieldbus transmission such as PROFIBUS or RS485 up to 2 Mbit/s rates, suitable for harsh conditions with mounting options via M12 thread or pre-mounted plates, and compatibility with cascading multiple units.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-200.1-50-m12/50125767
- Product Manual: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200-with-2-mbit-s-transmission-rate
- Installation Instructions: https://www.leuze.com/en-us/support/downloads/ddls-200-installation-guide
- CAD Data: https://www.leuze.com/en-us/cad-data/ddls-200-200.1-50-m12
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 200,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- CANopen, DeviceNet
- Transmission speed:
- 10 ... 1,000 kBit/s
- Transmission speed:
- 125 ... 500 kBit/s
- Number of connections:
- 3 Piece(s)
- Designation on device:
- BUS IN
- Designation on device:
- BUS OUT
- Type:
- Female
- Designation on device:
- PWR
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
