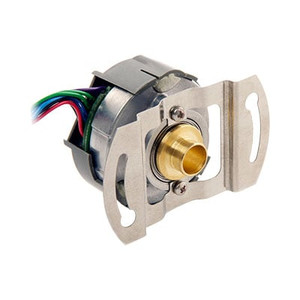

Dynapar F141000/0830A Series F14 Encoder
Dynapar
$385.00
The Series F14 encoder provides high performance, cost effective feedback for stepper and servo motor controls.
- Series:
- F14
- Average leadtime:
- 0 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 1
- Connection Location:
- Radial
- Connection Type:
- Pigtail Cable with Connector
- Disk Material:
- Thick glass
- Fixing:
- 2 M3 on 46 mm Diameter
- Housing Material:
- Aluminum
- Shaft / Bore Material:
- Brass
- Shaft / Bore Size (mm):
- 6.35
- Shaft Type:
- Hollow Shaft
- Special Shaft Feature:
- Inside Collar
- Termination:
- 1 ft Cable w/ Connector
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 5 VDC
- Maximum Frequency Response (KHz):
- 250
- Output Signal:
- line driver out incremental only
- Resolution (PPR):
- 1000
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP40
- Humidity Non-Condensing (%):
- 90
- Maximum Operating Temperature (°C):
- 120
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -40
- Datasheet:
- View
