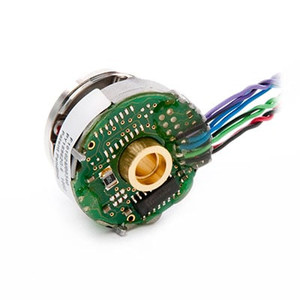

Dynapar F102048/00340 Series F10 Encoder
Dynapar
$339.00
The Series F10 encoder provides high performance, cost effective feedback for stepper and servo motor applications.
- Series:
- F10
- Average leadtime:
- 20 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- 1.030" (26.16mm) x 0.95" thick Servo Ring with Integral Flexure
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 1
- Disk Material:
- Thick glass
- Housing Material:
- Cast Aluminum
- Shaft / Bore Material:
- Brass
- Shaft / Bore Size (mm):
- 6
- Shaft Type:
- Hollow Shaft
- Termination:
- 6.5 in ± 0.5 in Twisted Pair Flying Leads
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 5 VDC
- Maximum Frequency Response (KHz):
- 300
- Output Signal:
- line driver out incremental only
- Resolution (PPR):
- 2048
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 90
- Maximum Operating Temperature (°C):
- 120
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- 0
- Datasheet:
- View
