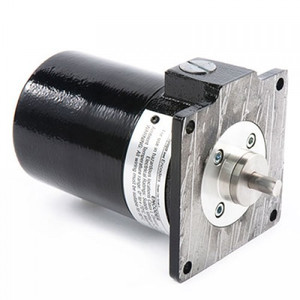

Dynapar X251800054 Rugged Incremental Optical Encoders

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar X251800054 Rugged Incremental Optical Encoders

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

X251800054

UPC:

MPN:

X251800054

Condition:

New

Series:

X25

Average leadtime:

30 Business Days

Feedback Type:

Incremental

Technology Sensing Type:

Optical

Weight (Pounds):

6.4

Connection Location:

Radial (Internal)

Connection Type:

Conduit Box

Disk Material:

Mylar

Flange Material:

Cast Aluminum

Housing Material:

Cast Aluminum

Maximum Operating Speed (RPM):

5000

Shaft / Bore Material:

Stainless Steel

Shaft / Bore Size (mm):

9.525

Shaft Type:

Shafted

Starting Torque (Ncm):

1.41

Termination:

Screw Terminals w/ Pressure Plates (14AWG-22AWG)

Duty Cycle:

43-57%

Incremental Signals:

A, A', B, B', Z, Z'

Input Voltage:

5-26 VDC

Line Driver Type:

7272

Maximum Frequency Response (KHz):

100

Output Signal:

5-26 VDC

Resolution (PPR):

1800

Reverse Polarity Protection:

Yes

Short Circuit Protection:

Yes

Approvals / Certifications:

[CE, UL Certified]

Hazardous Area Rating:

[Class 2 Div 2, Class I Div 2, Class II Div 1, Class I Div 1]

Hazardous Area Rating Certification:

[Class I, Div 1 Groups C&D, Class II, Div 2 Groups E,F&G]

Housing Protection Level:

IP66

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

70

Maximum Storage Temperature (°C):

90

Minimum Operating Temperature (°C):

0

Minimum Storage Temperature (°C):

-40

Noise Immunity Testing Specification:

EN61326-1

Shock Resistance:

50G, 11msec

Vibration Resistance:

2G, 5-2000Hz

Datasheet:

View
