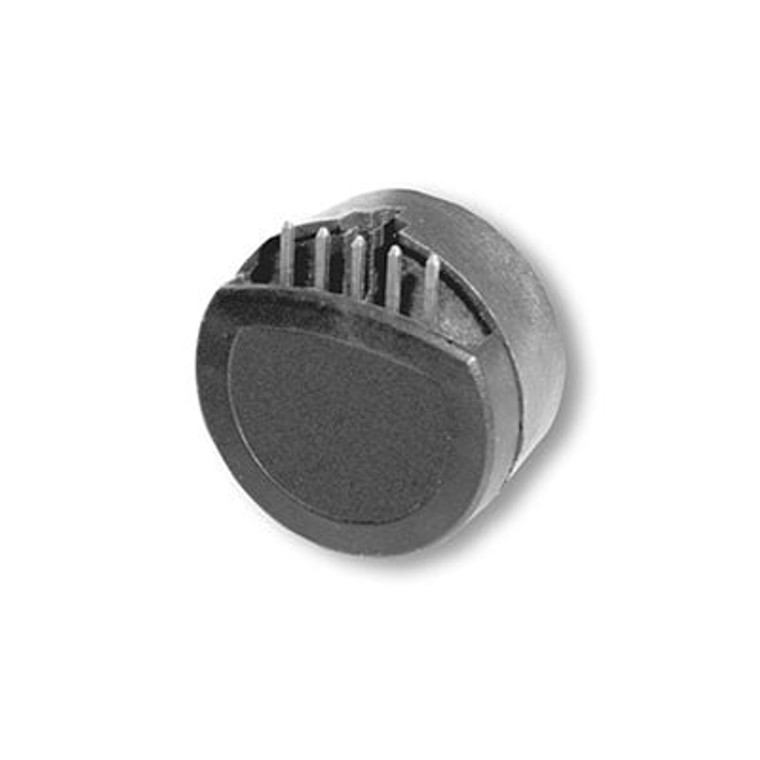

Dynapar M90512/0A1252 M9 Encoder

Dynapar M90512/0A1252 M9 Encoder

Dynapar
SKU:
M90512/0A1252
Availability:
Contact us to confirm availability and lead times.
$148.00
Condition:
New
Current Stock:
Description
With a total length less than 15mm and a very low mass, the M9 series incremental optical encoder is ideally suited for use on the moving heads of pick-and-place type machines.
Additional Information
Series:
M9
Average leadtime:
25 Business Days
Feedback Type:
Incremental
Mounting Configuration:
4x M1.6 on 0.728" BC
Technology Sensing Type:
Optical
Weight (Pounds):
0.3
Connection Location:
Radial
Connection Type:
Pigtail Cable
Disk Material:
Glass
Housing Material:
Plastic
Shaft / Bore Material:
Aluminum
Shaft / Bore Size (mm):
3.175
Shaft Type:
Modular and Frameless
Termination:
Cable
Duty Cycle:
45-55%
Incremental Signal Format:
A Leads B CCW viewed from Encoder Cover
Incremental Signals:
A, B, Z
Input Voltage:
5 VDC
Maximum Frequency Response (KHz):
200
Output Signal:
5 VDC
Resolution (PPR):
512
Hazardous Area Rating:
[None]
Hazardous Area Rating Certification:
[None]
Housing Protection Level:
IP54
Humidity Non-Condensing (%):
98
Maximum Operating Temperature (°C):
100
Maximum Storage Temperature (°C):
125
Minimum Operating Temperature (°C):
-20
Minimum Storage Temperature (°C):
-50
Datasheet:
View
