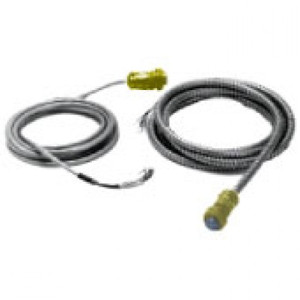

Dynapar 118020-0020 10-Pin MS Connector Cable Assembly for HS35iQ Series Encoders, 20 ft
Dynapar
$584.55
The Dynapar 118020-0020 is a 10-pin MS connector cable assembly designed for the HS35iQ series incremental encoders, supporting differential line driver outputs with index channel. It features a PVC jacket with 105°C temperature rating, overall foil shielding, and conductor configuration of 3 twisted pairs 24 AWG for output signals plus 2 twisted pairs 22 AWG for input power; standard length is 10 feet, with custom lengths available in 5-foot increments (suffix -0020 denotes 20 feet). Rated for NEMA 12 environmental protection, it provides reliable signal integrity in industrial motion control applications such as factory automation, motor feedback, and position sensing.
Documentation
- Technical Datasheet: https://www.dynapar.com/hubfs/uploadedFiles/Downloads/HS35iQ-Datasheet-703409-0001.pdf
- HS35iQ Series Catalog: https://www.dynapar.com/products/rotary-encoders/hs35iq
- Cables and Connectors Guide: https://www.dynapar.com/hubfs/uploadedFiles/Downloads/Cables_and_Connectors.pdf
- Product Page: https://www.dynapar.com/products_and_solutions/encoder_cables/608556/118020-0020
