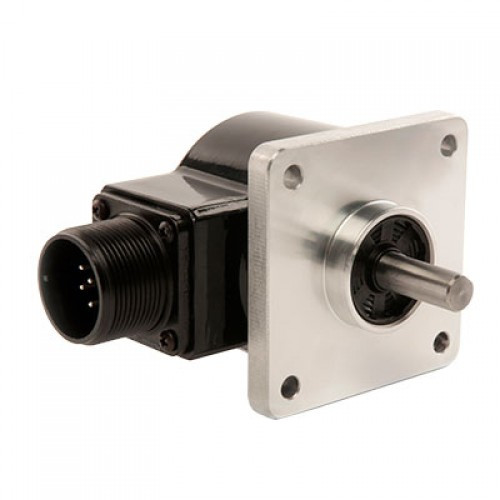

Dynapar HA725100000001 Series HA725 Encoder, 10,000 PPR, 2.5" Flange Mount
Dynapar
$1,206.00
The Series HA725 encoders features the industry standard size 25 flange mount for easy installation.
- Series:
- HA725
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- Flange Mount
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 1.5
- Connection Location:
- Radial
- Connection Type:
- Connector
- Disk Material:
- Glass
- Flange Material:
- Aluminum
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 5000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 9.525
- Shaft Type:
- Shafted
- Termination:
- 7 Pin MS
- Duty Cycle:
- 43-57%
- Incremental Signal Format:
- A Leads B CCW viewed from Shaft end of Encoder
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 10-30 VDC
- Line Driver Type:
- TBD
- Maximum Frequency Response (KHz):
- 200
- Output Signal:
- 10-30 VDC
- Resolution (PPR):
- 10000
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 70
- Maximum Storage Temperature (°C):
- 70
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -25
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 2G, 5-2000Hz
- Datasheet:
- View
