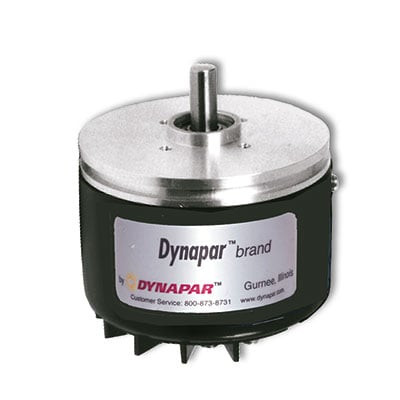

Dynapar EC2330000400 Series EC23 High Resolution Optical Incremental Encoder

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar EC2330000400 Series EC23 High Resolution Optical Incremental Encoder

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

EC2330000400

UPC:

MPN:

EC2330000400

Condition:

New

Series:

EC23

Average leadtime:

5 Business Days

Feedback Type:

Incremental

Technology Sensing Type:

Optical

Weight (Pounds):

2

Connection Location:

Radial

Connection Type:

Pigtail Cable

Disk Material:

Glass

Flange Material:

Aluminum

Housing Material:

Aluminum

Maximum Operating Speed (RPM):

5000

Shaft / Bore Material:

Stainless Steel

Shaft / Bore Size (mm):

6.35

Shaft Loading Axial (mm):

22.2

Shaft Loading Radial (mm):

22.2

Shaft Type:

Shafted

Starting Torque (Ncm):

0.07

Termination:

1.5 ft Cable

Duty Cycle:

43-57%

Incremental Signal Format:

Format C: A Lead B CW

Incremental Signals:

A, B, Z

Input Voltage:

5-26 VDC

Line Driver Type:

7273

Maximum Frequency Response (KHz):

250

Output Signal:

Open Collector w/ 2.2K Ohm

Resolution (PPR):

3000

Reverse Polarity Protection:

Yes

Short Circuit Protection:

Yes

Hazardous Area Rating:

[None]

Hazardous Area Rating Certification:

[None]

Housing Protection Level:

IP54

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

70

Maximum Storage Temperature (°C):

90

Minimum Operating Temperature (°C):

0

Minimum Storage Temperature (°C):

-40

Noise Immunity Testing Specification:

EN61326-1

Shock Resistance:

50G, 11msec

Vibration Resistance:

20G, 5-2000Hz

Datasheet:

View
