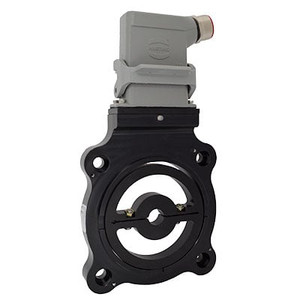

Dynapar ST81024ZC05CVCC Northstar SLIM Tach ST85 Digital Tachometer

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar ST81024ZC05CVCC Northstar SLIM Tach ST85 Digital Tachometer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ST81024ZC05CVCC

UPC:

MPN:

ST81024ZC05CVCC

Condition:

New

Series:

ST85

Average leadtime:

10 Business Days

Feedback Type:

Incremental

Mounting Configuration:

NEMA 8.5" 180 C-Face

Technology Sensing Type:

Magnetic - Bearingless

Weight (Pounds):

15

Connection Location:

Radial

Connection Type:

Connector

Housing Material:

Aluminum

Maximum Operating Speed (RPM):

7000

Shaft / Bore Material:

Aluminum

Shaft / Bore Size (mm):

22.225

Shaft Type:

Hollow Shaft

Termination:

Latching Industrial Connector w/ 1/2" NPT

Duty Cycle:

35-65%

Incremental Signals:

A, A', B, B', Z, Z'

Input Voltage:

5-26 VDC

Line Driver Type:

IC-WE

Maximum Frequency Response (KHz):

180

Output Signal:

5-26 VDC

Resolution (PPR):

1024

Reverse Polarity Protection:

Yes

Short Circuit Protection:

Yes

Hazardous Area Rating:

[None]

Hazardous Area Rating Certification:

[None]

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

100

Maximum Storage Temperature (°C):

120

Minimum Operating Temperature (°C):

-40

Minimum Storage Temperature (°C):

-40

Noise Immunity Testing Specification:

EN61326-1

Shock Resistance:

300G min.

Vibration Resistance:

20G, 5-2000Hz

Datasheet:

View
