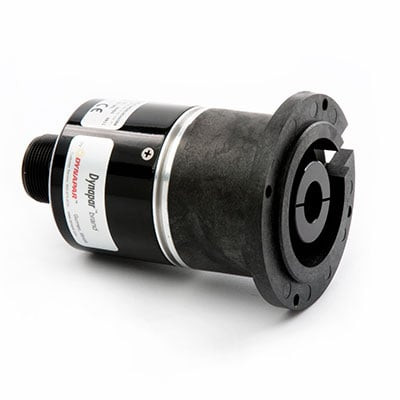

Dynapar HA5262048A541 Series HA26 Industrial Encoder

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar HA5262048A541 Series HA26 Industrial Encoder

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HA5262048A541

UPC:

MPN:

HA5262048A541

Condition:

New

Series:

HA526

Average leadtime:

5 Business Days

Feedback Type:

Incremental

Mounting Configuration:

Flange Adapter with Pilot

Technology Sensing Type:

Optical

Weight (Pounds):

3

Connection Location:

Radial

Connection Type:

Connector

Disk Material:

Glass

Flange Material:

Aluminum

Maximum Operating Speed (RPM):

5000

Shaft / Bore Material:

Stainless Steel

Shaft / Bore Size (mm):

9.525

Shaft Type:

Shafted

Termination:

10 Pin MS

Duty Cycle:

45-55%

Incremental Signal Format:

Format B: A Leads B CCW

Incremental Signals:

A, A', B, B', Z, Z'

Input Voltage:

5-26 VDC

Line Driver Type:

7272

Maximum Frequency Response (KHz):

100

Output Signal:

5-26 VDC

Resolution (PPR):

2048

Reverse Polarity Protection:

Yes

Short Circuit Protection:

Yes

Hazardous Area Rating:

[None]

Hazardous Area Rating Certification:

[None]

Housing Protection Level:

IP54

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

70

Maximum Storage Temperature (°C):

90

Minimum Operating Temperature (°C):

0

Minimum Storage Temperature (°C):

-40

Noise Immunity Testing Specification:

EN61326-1

Shock Resistance:

50G, 11msec

Vibration Resistance:

20G, 5-2000Hz

Datasheet:

View
