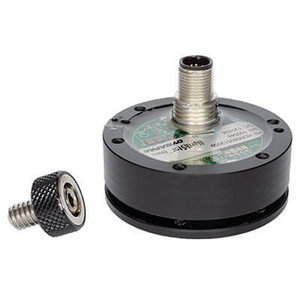

The disc-shaped HDN58 is perfect for those speed monitoring and positioning applications where compact size, non-contact functioning is needed. Encapsulated electronics and delrin housing make it ideal for harsh wash-down applications.
- Series:
- HDN58
- Average leadtime:
- 0 Business Days
- Feedback Type:
- Incremental
- Target Magnet:
- None - Customer Supplied
- Technology Sensing Type:
- Magnetic Bearingless
- Weight (Pounds):
- 1.25
- Connection Location:
- Axial
- Connection Type:
- Pigtail Cable
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 3000
- Shaft Type:
- Non-Contact
- Termination:
- 8 Conductor 6 ft Cable
- Incremental Signal Format:
- A Leads B CW viewed from Shaft end of Encoder
- Incremental Signals:
- A, A', B, B', Z, Z'
- Input Voltage:
- 6-32 VDC
- Maximum Frequency Response (KHz):
- 200
- Output Signal:
- 6-32 VDC
- Resolution (PPR):
- 125
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Approvals / Certifications:
- [ROHS]
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP69K
- Humidity Non-Condensing (%):
- 100
- Maximum Operating Temperature (°C):
- 80
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- -30
- Minimum Storage Temperature (°C):
- -40
- Datasheet:
- View
