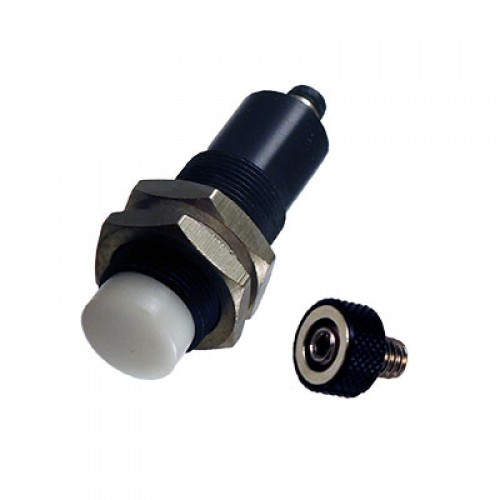

Dynapar HDP18T025602R HDP18 Non-contact Encoder
Dynapar
$843.00
(No reviews yet)
Write a Review
Write a Review
Dynapar
Dynapar HDP18T025602R HDP18 Non-contact Encoder
Smallest of the non-contact shaft-less encoders, the HDP18 is ideal for tight mounting constraints with low resolution requirements. A new M8 connector version is now available.
- Series:
- HDP18
- Average leadtime:
- 0 Business Days
- Feedback Type:
- Incremental
- Target Magnet:
- Ring Magnet w/ Knurled Aluminum Bolt, 1/4-20
- Technology Sensing Type:
- Magnetic Bearingless
- Weight (Pounds):
- 0.65
- Connection Location:
- Axial
- Connection Type:
- Pigtail Cable
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 3000
- Shaft Type:
- Non-Contact
- Termination:
- 5 Conductor 6 ft Cable
- Incremental Signal Format:
- A Leads B CW viewed from Shaft end of Encoder
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 6-32 VDC
- Maximum Frequency Response (KHz):
- 200
- Output Signal:
- 6-32 VDC
- Resolution (PPR):
- 256
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Approvals / Certifications:
- [ROHS]
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP69K
- Humidity Non-Condensing (%):
- 100
- Maximum Operating Temperature (°C):
- 80
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- -30
- Minimum Storage Temperature (°C):
- -40
- Datasheet:
- View
