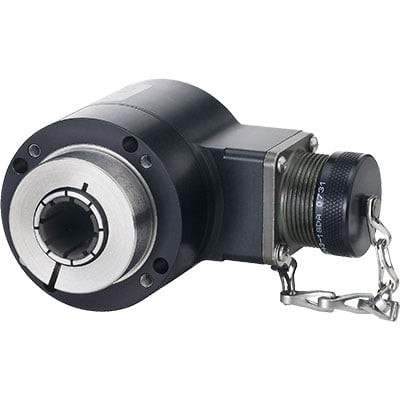

Dynapar ISD2510246GN002 ISD25 Ruggedized Hubshaft Encoder
Dynapar
$2,659.00
The ISD25 encoder is a ruggedized hubshaft encoder with advanced phased array sensing technology. This allows the device to be both accurate and robust. It can be applied to a number of hazardous locations when used in conjunction with an IS barrier. The oversized bearings and improved seals make this a great choice for application where a industrial duty encoder may not last.
- Series:
- ISD25
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3.4
- Connection Location:
- Radial
- Connection Type:
- Pigtail Cable
- Disk Material:
- Aluminum
- Fixing:
- No Tether
- Flange Material:
- Anodized Aluminum
- Housing Material:
- Anodized Aluminum
- Maximum Operating Speed (RPM):
- 6000
- Shaft / Bore Material:
- 303 Stainless Steel (passivated)
- Shaft / Bore Size (mm):
- 12
- Shaft Type:
- Hub Shaft
- Starting Torque (Ncm):
- 4.59
- Termination:
- 10 ft (120 in) Cable
- Duty Cycle:
- 45-55%
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5 VDC
- Line Driver Type:
- 7272
- Maximum Frequency Response (KHz):
- 125
- Output Signal:
- 5 VDC
- Resolution (PPR):
- 1024
- Reverse Polarity Protection:
- Yes
- Approvals / Certifications:
- [ATEX, CE, IECEx, ROHS, UL Certified]
- Hazardous Area Rating:
- [Class 2 Div 2, Class I Div 2, Class II Div 1, Class I Div 1]
- Hazardous Area Rating Certification:
- [Class I, Div 1 Groups C&D, Class II, Div 2 Groups E,F&G]
- Housing Protection Level:
- IP67
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 80
- Maximum Storage Temperature (°C):
- 100
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 20G, 5-3000Hz
- Datasheet:
- View
