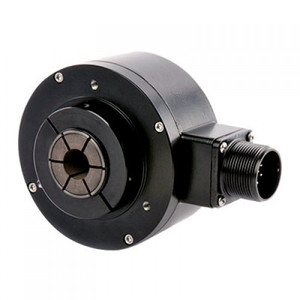

Dynapar HS35iQ Hollow-Shaft Encoder HS35IQ0102481P71R1
Dynapar
$1,702.35
The Dynapar HS35IQ0102481P71R1 is a rugged hollow-shaft incremental optical encoder from the HS35iQ series, featuring 1024 PPR resolution with A, A', B, B', Z, Z' quadrature outputs and 7272 line driver. It offers IP67 sealing, 400g shock resistance (6 ms), 20g vibration (5-3000 Hz), and operation from -40°C to 100°C, with electrically isolated 15.875 mm stainless steel bore, radial 10-pin connector termination, and maximum speed of 6000 RPM. PulseIQ technology provides specific fault indication for issues like insufficient voltage, cable integrity (7272 differential), shaft slip, overspeed, electronic failure, and over-temperature, enabling rapid root-cause diagnostics in demanding mill and heavy-duty applications.
Documentation
- Technical Datasheet: https://www.dynapar.com/ecatalog/encoder-products/product-details/HS35IQ0102481P71R1
- HS35iQ Series Brochure: https://www.dynapar.com/products_and_solutions/hs35iq-hollow-shaft-encoder
- HS35R Product Details: https://www.dynapar.com/ecatalog/encoder-products/product-details/HS35R102481P7
- Installation Guide: https://www.dynapar.com/ag_hs35r/
