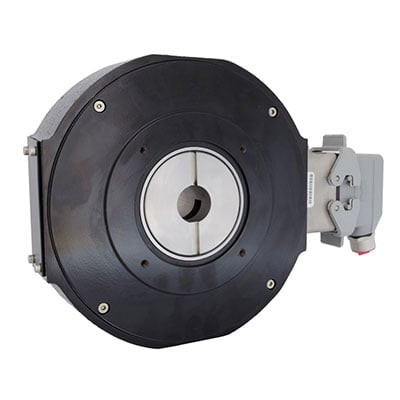

Dynapar HT82048LM551C NorthStar RIM Tach NexGen HT85 Hollow-Shaft Encoder
The NorthStar brand RIM Tach NexGen HT85 is a heavy mill duty, hollow-shaft encoder that accommodates large thru-shaft sizes (up to 4.5 inches or 115mm) and can easily mount to most AC or DC fan cooled motors. This hollow-shaft encoder offers the reliability, resolution, and flexibility characteristics for which NorthStar products are known.
- Series:
- HT85
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Magnetic
- Weight (Pounds):
- 41
- Connection Location:
- Radial
- Connection Type:
- Connector
- Fixing:
- Rod Tether
- Housing Material:
- Cast Iron/Stainless Steel
- Maximum Operating Speed (RPM):
- 3600
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 55
- Shaft Type:
- Hollow Shaft
- Termination:
- Latching Industrial Connector w/ 1/2" NPT
- Duty Cycle:
- 35-65%
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- IC-WE
- Maximum Frequency Response (KHz):
- 180
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 2048
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 85
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 30G min.
- Vibration Resistance:
- 18G, 5-2000Hz
- Datasheet:
- View
