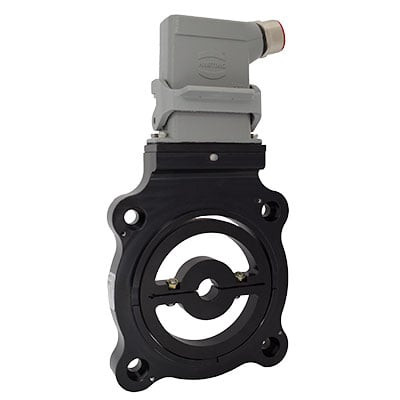

Dynapar ST51024LC05BVCC Tachometer for Harsh Environments
Applications would include speed and length monitoring in harsh factory environments such as paper/pulp and steel. Also can be used in a variety of motor feedback applications where space is a premium as this tachometer is compact.
- Series:
- ST56
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- NEMA 4.5" 56 C-Face & 140 C-Face
- Technology Sensing Type:
- Magnetic - Bearingless
- Weight (Pounds):
- 10
- Connection Location:
- Radial
- Connection Type:
- Conduit Box
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 7000
- Shaft / Bore Material:
- Aluminum
- Shaft / Bore Size (mm):
- 22.225
- Shaft Type:
- Hollow Shaft
- Termination:
- Screw Terminals
- Duty Cycle:
- 35-65%
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- IC-WE
- Maximum Frequency Response (KHz):
- 120
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 1024
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 100
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 300G min.
- Vibration Resistance:
- 20G, 5-2000Hz
- Datasheet:
- View
