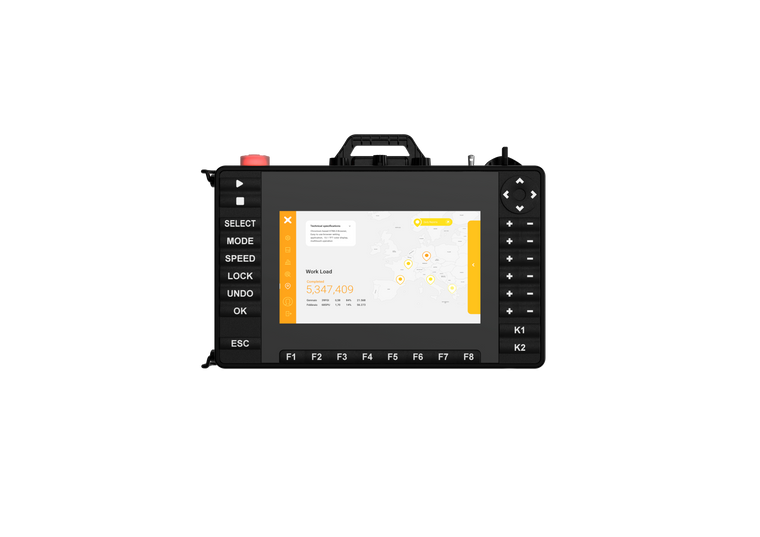

EXOR X10 Smart Wired PoE Mobile HMI Handheld, 10" PCAP Multitouch, Power over Ethernet, Emergency Stop, 35-Button Keypad
Exor
$4,095.00
Tariffs IncludedThe price shown includes all applicable U.S. import tariffs on this EXOR product - no surprise duties or added fees at checkout.
The EXOR X10 Smart Wired (PoE) is a safety-approved 10" handheld mobile HMI that carries power and communication on a single Power over Ethernet cable. The larger display gives operators more room for data-rich visualization, while a thin, light PoE cable improves handling over traditional pendants. Safety signals, including the illuminated emergency stop, are transmitted to the Xbase Smart Wired base station through black channel communication, and a 35-button programmable keypad provides fast tactile control.
Key Features
- 10" TFT color display with PCAP capacitive multitouch for detailed visualization
- Single-cable Power over Ethernet (PoE) - power and data on one thin, light cable
- Illuminated emergency stop button for clear, reliable safety
- Integrated safety enabling switch; black channel safety communication
- 35 user-programmable buttons with mechanical feedback
- 3D accelerometer
- JMobile runtime on board; Corvina IIoT cloud-ready
Technical Specifications
| Device Type | Wired (PoE) handheld mobile HMI, safety-approved |
|---|---|
| Display | 10" TFT color, PCAP capacitive multitouch |
| Connectivity | Single-cable Power over Ethernet (PoE); black channel safety communication |
| Safety | Illuminated emergency stop, enabling switch, black channel safety to Xbase |
| Keypad | 35 user-programmable buttons, mechanical feedback |
| Sensors | 3D accelerometer |
| Input Voltage | 24 Vdc |
| Input Voltage Limits | 10 to 32 Vdc |
| Power Consumption | 1.19 A at 24 Vdc (max.) |
| Operating Temperature | -20 to +60 °C |
| Storage Temperature | -20 to +70 °C |
| Relative Humidity | 5 to 85 %, non-condensing |
| Protection Rating | IP65 (not UL evaluated) |
| Software | JMobile runtime on device; JMobile Studio for application development; Corvina IIoT cloud-ready |
| Certifications | CE, RCM, functional safety; UL 508 / UL 61010 planned |
| Country of Origin | Italy |
| Warranty | 24 months |
Applications
The 10" PoE format fits data-rich, fixed-station applications that want wired reliability:
- Large machinery and production lines with complex visualization needs
- Robotic and assembly cells with a fixed connection point
- Machine tools requiring detailed on-screen information and safe handheld control
- Commissioning and maintenance simplified by a single thin PoE cable
System & Companion Products: The X10 Smart Wired (PoE) connects to an EXOR Xbase Smart Wired (PoE) base station using the EXOR Smart Wired PoE 5M or 10M connection cable. Store the unit on the Xdock wall mounting bracket.
Frequently Asked Questions
What is the EXOR X10 Smart Wired (PoE)?
It is a 10" wired handheld mobile HMI powered over a single PoE cable that carries both power and data, with an illuminated emergency stop, enabling switch, and a 35-button programmable keypad.
How is the X10 Smart Wired different from the X10 Wireless?
The Smart Wired version uses a single PoE cable for power and communication, removing battery management; the Wireless version uses a battery and a safety-rated Wi-Fi link for fully cable-free mobility.
What base station and cable does it require?
It connects to an EXOR Xbase Smart Wired (PoE) base station with a 5M or 10M PoE connection cable, depending on the reach you need.
What is the protection rating?
The X10 Smart Wired (PoE) is rated IP65 (not UL evaluated), suitable for demanding industrial environments.
Automation Distribution is an authorized EXOR distributor. For pricing, lead time, configuration help, or to request the validated datasheet, contact our automation team at 1-888-600-3080.
