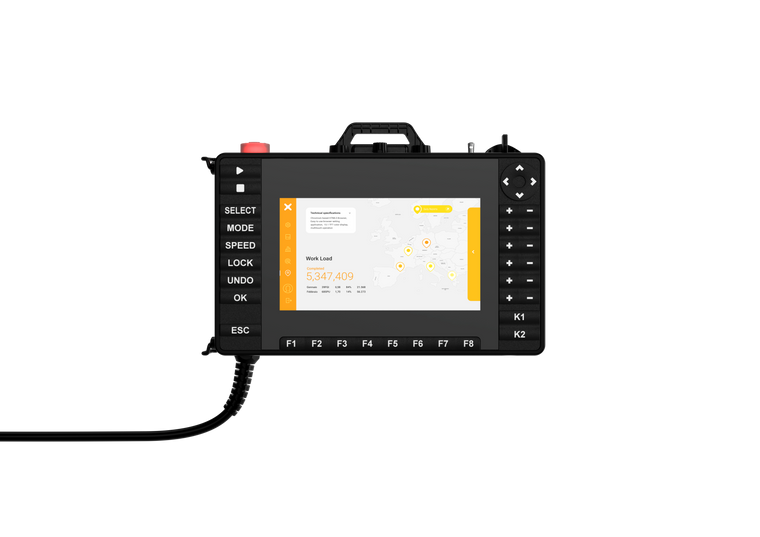

EXOR X7 Smart Wired PoE Mobile HMI Handheld, 7" PCAP Multitouch, Power over Ethernet, Emergency Stop, 35-Button Keypad
Exor
$3,395.00
Tariffs IncludedThe price shown includes all applicable U.S. import tariffs on this EXOR product - no surprise duties or added fees at checkout.
The EXOR X7 Smart Wired (PoE) is a safety-approved 7" handheld mobile HMI that delivers power and communication over a single Power over Ethernet cable. The result is a thinner, lighter cable than traditional wired pendants, with the reliability and safety industrial environments demand. Safety signals - including the illuminated emergency stop - travel to the Xbase Smart Wired base station through black channel communication, while a bright PCAP multitouch display and a 35-button programmable keypad keep machine control fast and intuitive.
Key Features
- 7" TFT color display with PCAP capacitive multitouch
- Single-cable Power over Ethernet (PoE) - power and data on one thin, light cable
- Illuminated emergency stop button for clear, reliable safety
- Integrated safety enabling switch; black channel safety communication
- 35 user-programmable buttons with mechanical feedback
- 3D accelerometer
- JMobile runtime on board; Corvina IIoT cloud-ready
Technical Specifications
| Device Type | Wired (PoE) handheld mobile HMI, safety-approved |
|---|---|
| Display | 7" TFT color, PCAP capacitive multitouch |
| Connectivity | Single-cable Power over Ethernet (PoE); black channel safety communication |
| Safety | Illuminated emergency stop, enabling switch, black channel safety to Xbase |
| Keypad | 35 user-programmable buttons, mechanical feedback |
| Sensors | 3D accelerometer |
| Input Voltage | 24 Vdc |
| Input Voltage Limits | 10 to 32 Vdc |
| Power Consumption | 1.17 A at 24 Vdc (max.) |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -20 to +70 °C |
| Relative Humidity | 5 to 85 %, non-condensing |
| Protection Rating | IP65 (not UL evaluated) |
| Software | JMobile runtime on device; JMobile Studio for application development; Corvina IIoT cloud-ready |
| Certifications | CE, RCM, functional safety; UL 508 / UL 61010 planned |
| Country of Origin | Italy |
| Warranty | 24 months |
Applications
The X7 Smart Wired (PoE) suits applications that want wired reliability with a lighter, simpler cable:
- Machine tools and production cells with a fixed connection point
- Large machinery requiring safe handheld control without battery management
- Robotic cells and assembly stations
- Commissioning and maintenance where a single thin PoE cable simplifies handling
System & Companion Products: The X7 Smart Wired (PoE) connects to an EXOR Xbase Smart Wired (PoE) base station using the EXOR Smart Wired PoE 5M or 10M connection cable. Store the unit on the Xdock wall mounting bracket.
Frequently Asked Questions
What is the EXOR X7 Smart Wired (PoE)?
It is a 7" wired handheld mobile HMI that uses Power over Ethernet, so a single thin cable carries both power and data. It includes an illuminated emergency stop, enabling switch, and a 35-button keypad.
What is the advantage of PoE over a traditional wired pendant?
PoE combines power and communication in one cable, so the cable is thinner and lighter and the installation is cleaner, while keeping the reliability and safety of a wired connection.
Does the X7 Smart Wired (PoE) need a base station?
Yes. It connects to an EXOR Xbase Smart Wired (PoE) base station via a 5M or 10M PoE connection cable. The base provides the hardware safety outputs to the machine.
How are safety signals handled on the wired PoE version?
Safety signals, including the emergency stop, are transmitted to the base through black channel communication, the same safety concept used on the wireless models.
