Description

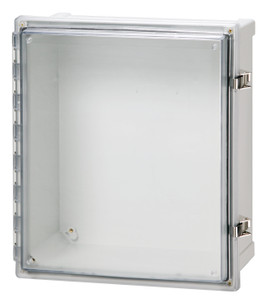

Product card: AR1084CHSSLT Including: Hinged cover base with 10-32 brass inserts, latched cover with formed in place PUR gasket, and stainless hinge pin. Quick release latches. (Latch options available.) Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting. Product nbr: 8561106 Description: PC Enclosure Remarks: Hinged transparent cover w/S.S. Lockable latch Package: 1 Unit: PCS Product group: EAN: 6418074066749 ETIM: EC000261 EC000261 Support items: Product card (PDF) Dimensional drawing (mm) Cad-files (registration needed) Dimensions: Length (mm): 254.0 Width (mm): 203.0 Height (mm): 102.0 Length (inch): 10.0 Width (inch): 8.0 Height (inch): 4.0 Materials: Material: Polycarbonate Base colour: RAL 7035 -light grey Cover screws material: Stainless steel Cover colour: Clear transparent Gasket material: Polyurethane Temperatures: Temperature ??C (short term): -40 ? 140 ??C Temperature ??C (continuous): -40 ? 80 ??C Temperature ??F (short term): -40 ? 284 ??F Temperature ??F (continuous): -40 ? 175 ??F Ratings: Ingress Protection (EN 60529): IP66/IP67 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): 0 UV resistance: UL 508 Flammability Rating: UL 508 Glow Wire Test (IEC 695-2-1) ??C: 960 NEMA Class: UL Type 4, 4X, 6, 6P, 12 and 13 Product is connected to following catalogs: Fibox Enclosures : ARCA : AR 1084
