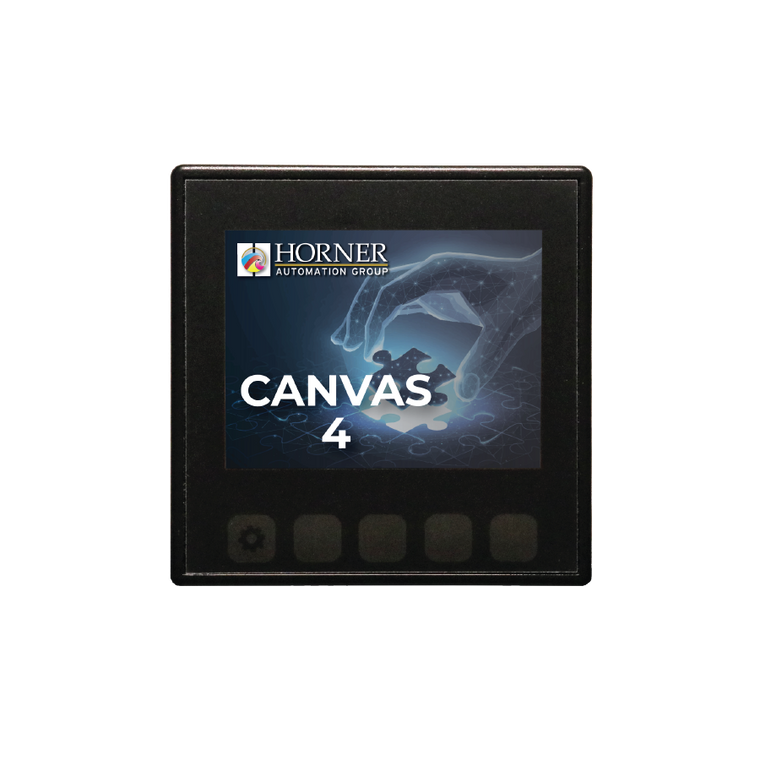

Horner Automation HE-CV-035C-06 Canvas 4 Controller 3.5, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out

(No reviews yet) Write a Review

Write a Review

Horner Automation

Horner Automation HE-CV-035C-06 Canvas 4 Controller 3.5, 12 DC In, 12 DC Out, 6 Analog In (mA/V/Tc/mV/RTD), 4 Analog Out

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HE-CV-035C-06

UPC:

MPN:

HE-CV-035C-06

Condition:

New

Ladder Logic Memory:

2 MB

Logic Scan Rate:

0.02 mS/K

Removable Memory:

microSD

Local Comment Storage:

Yes

Floating Point Support:

Yes

AutoTune PID Capable:

Yes

Characters / Pixels:

320 x 240 (QVGA)

Display Technology:

3.5" TFT Color

Character Height:

selectable fonts

Number of Pages:

1023

Fields or Objects per Page:

1023

Total Keys:

5

Function Keys:

4

OEM Faceplate Available:

Yes

Built-in I/O Points:

22-44

SmartStix, SmartRail, SmartBlock I/O Support:

Yes, CsCAN and Ethernet

Digital Inputs / Outputs, max:

2048 / 2048

Analog Inputs / Outputs, max:

512 / 512

General Purpose Registers (words):

(50,000 retentive)

General Purpose Internal Coils (bits):

32768 (16384 retentive)

Ethernet Support:

Standard

Remote Access:

WebMI, HTTP or EnvisionRV

Remote File Access:

FTP or EnvisionFX

IIoT Support:

MQTT (Sparkplug)

Total Active Ports:

2

RS-232 Ports / RS-485 Ports:

RS-232 & RS-485

PLC / Drive Protocols:

Yes

RTU / Modbus Master / Slave:

Yes

Serial ASCII In / Out:

Yes

USB Ports (A and Mini-B):

Yes

Integrated CAN Networks:

1

Maximum CAN Distance:

500m per segment, 4 segments maximum

CAN Port (Independently Isolated):

Remote I/O, Peer-to-peer Comms, Cscape

Supported CAN Protocols:

CsCAN, CANopen, DeviceNet, J1939

Ethernet Productivity:

One 10/100 Mbps (Auto-MDX)

Ethernet Protocols:

TCP/IP, Modbus TCP, FTP, SMTP, EGD, ICMP, ASCII

Remote I/O:

SmartRail, SmartStix, SmartBlock, SmartMod, OCS-I/O

Height:

3.78" / 96.0 mm

Width:

3.78" / 96.0 mm

Depth:

2.26" / 58 mm

I/O Module Depth:

COM option adds 0.5" / 13 mm depth

Operating Temperature*:

-0 to 60°C *Note: -40°C Low Temp Option, Contact Factory

Humidity (non-condensing):

5 to 95%

Product Certifications:

CE, UL Class 1 Div II

Environmental Rating:

NEMA & UL Type 1, 3R, 4, 4x, 12, 12k, 13, ABS

Catalog:

View
