Description

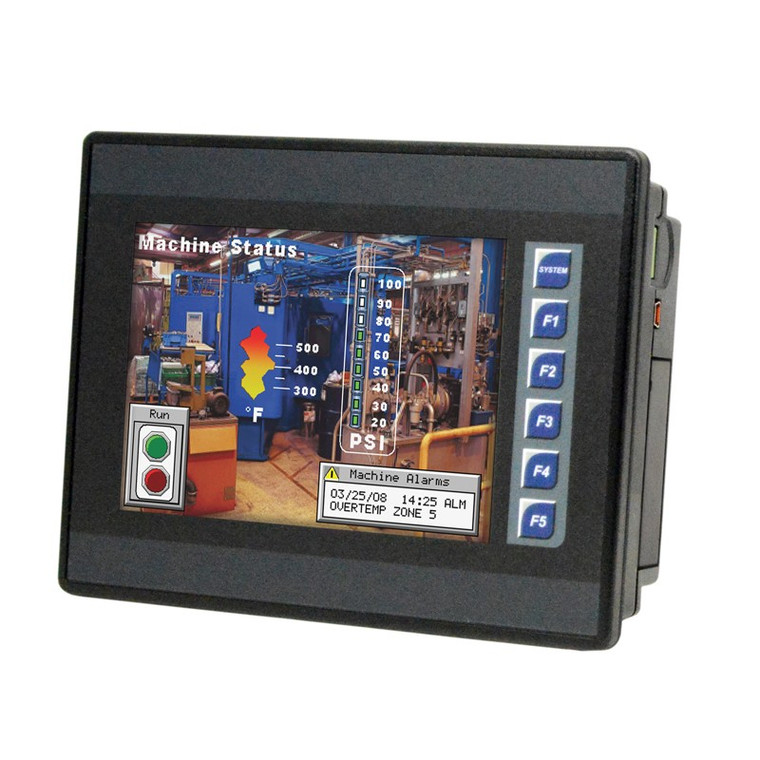

EXL6 Series OCS with DC/DC and Universal Analog I/O. Twelve (12) Digital Inputs compatible with 12V/24VDC - four (4) inputs can be used for 500kHz High Speed Counting. Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Six (6) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-60mV, 0-10V and 4-20mA. Four (4) 12-bit Analog Outputs selectable between 0-10V and 4-20mA. *Operating Temp (-20øC to 60øC, 0øC to 50øC for quoted T/C specs. Storage Temp (-30øC to 70øC) and humidity 5-95% RH non-condensing. With SAE J1939 communications. CsCAN support is removed.
Logic engine features 1MB of application memory with a 0.013mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include:
- 640x480 LCD TFT color graphics display with a high resolution resistive touchscreen
- 4 function keys and a system key
- USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
- USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives
- Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols
Networking features include:
- Built-in 10/100 Ethernet port
- Integrated CsCAN port
All units feature a microSD slot, supporting at least 32GB. COM option expansion modules are supported, including Profibus DP, 2ch/4ch Analog Output, Radio Modem, Telephone Modem, and GPRS Cellular Modem. The COM options are independent of the serial ports.
