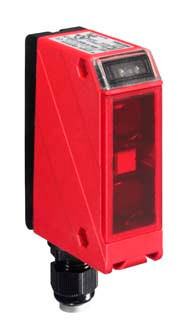

Leuze HRT 96K/R-1680-1200-25 Diffuse sensor with background suppression
Leuze
$807.80
HRT 96K/R-1680-1200-25 Diffuse sensor with background suppression
- Series:
- 96
- Operating principle:
- Diffuse reflection principle with background suppression
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0.1 ... 1.2 m
- Operating range, gray 18%:
- 0.1 ... 1.1 m
- Operating range, black 6%:
- 0.1 ... 1 m
- Operating range limit, white 90%:
- 0.1 ... 1.8 m
- Operating range limit, gray 18%:
- 0.1 ... 1.6 m
- Operating range limit, black 6%:
- 0.1 ... 1.35 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Infrared
- Supply voltage UB:
- 20 ... 230 V, AC/DC
- Residual ripple:
- 0 ... 15 %, From UB
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Relay, NC contact/NO contact
- Switching principle:
- Light switching
- Switching frequency:
- 20 Hz
- Type of connection:
- Terminal
- No. of pins:
- 5 -pin
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Plastic
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 150 g
- Note:
- Housing part used contains perfluorobutanesulfonic acid (PFBS)
- Type of display:
- LED
- Operational controls:
- Multiturn potentiometer
- Ambient temperature, operation:
- -30 ... 55 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365080
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
