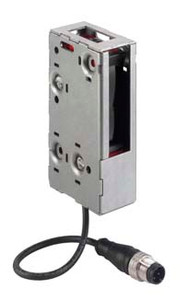

Leuze HRTL 46B/66,200-S12 S-Ex n Diffuse sensor with background suppression
Leuze
$439.64
HRTL 46B/66,200-S12 S-Ex n Diffuse sensor with background suppression
- Series:
- 46B
- Operating principle:
- Diffuse reflection principle with background suppression
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0.05 ... 1.2 m
- Operating range, gray 18%:
- 0.06 ... 0.85 m
- Operating range, black 6%:
- 0.08 ... 0.75 m
- Operating range limit:
- 0.05 ... 1.2 m
- Operating range limit:
- Typical operating range
- Beam path:
- Collimated
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2007
- Type of light spot geometry:
- Oval
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching (PNP)/dark switching (NPN)
- Switching principle:
- Dark switching (PNP)/light switching (NPN)
- Switching frequency:
- 1,000 Hz
- Type of connection:
- Cable with connector
- Cable length:
- 200 mm
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 4 -pin
- Dimension (W x H x L):
- 27.5 mm x 87 mm x 54 mm
- Housing material:
- Plastic
- Plastic housing:
- PC-ABS
- Lens cover material:
- Plastic
- Net weight:
- 250 g
- Type of display:
- LED
- Operational controls:
- Multiturn potentiometer
- Ambient temperature, operation:
- -30 ... 60 °C
- Ambient temperature, storage:
- -30 ... 60 °C
- Ex device category:
- 3
- Ex-Zone:
- 2,22
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC002719
- ETIM 9.0:
- EC002719
- ETIM 10.0:
- EC002719
- Datasheet:
- View
- Declaration of Conformity:
- View
