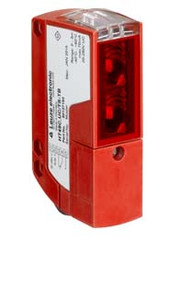

Leuze HT49C.UC/M4-TB Diffuse sensor with background suppression
Leuze
$348.22
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze HT49C.UC/M4-TB Diffuse sensor with background suppression
HT49C.UC/M4-TB Diffuse sensor with background suppression
- Series:
- 49C
- Operating principle:
- Diffuse reflection principle with background suppression
- Black-white error:
- < 10% up to 1200 mm
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0.005 ... 3 m
- Operating range, gray 18%:
- 0.02 ... 2 m
- Operating range, black 6%:
- 0.05 ... 1.5 m
- Operating range limit, white 90%:
- 0.005 ... 3 m
- Operating range limit:
- Typical operating range
- Adjustment range:
- 120 ... 3,000 mm
- Light source:
- LED, Red
- Wavelength:
- 630 nm
- LED group:
- Exempt group (in acc. with EN 62471)
- Protective circuit:
- Interference blanking,Transient protection
- Supply voltage UB:
- 20 ... 250 V, AC/DC
- Power consumption (with AC):
- 1.5 V·A
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- MOSFET semiconductor, NO (normally open)
- Switching principle:
- Light/dark switchable
- Switching frequency:
- 150 Hz
- Response time:
- 3.3 ms
- Readiness delay:
- 300 ms
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Terminal
- Type of terminal:
- Spring-cage terminal
- No. of pins:
- 5 -pin
- Dimension (W x H x L):
- 31 mm x 104 mm x 55.5 mm
- Housing material:
- Plastic
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 150 g
- Housing color:
- Red
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Type of display:
- LED
- Operational controls:
- Multiturn potentiometer,Teach button
- Function of the operational control:
- Activation of the time module for dropout delay,Light/dark switching,Range adjustment,Switching range adjustment
- Ambient temperature, operation:
- -40 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365080
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC002719
- ETIM 9.0:
- EC002719
- ETIM 10.0:
- EC002719
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
