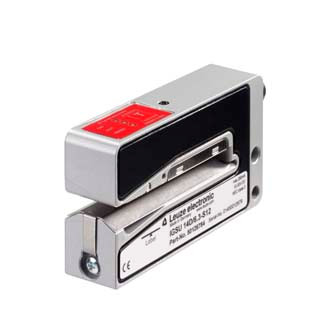

IGSU 14D/6.3-S12 Ultrasonic fork sensor
- Series:
- 14
- Principle of physics:
- Ultrasonics
- Application:
- Detection of non-transparent labels,Detection of transparent labels
- Label width, min.:
- 10 mm
- Label gap, min.:
- 2 mm
- Medium:
- Transparent and not transparent
- Special version:
- Teach input,Warning output
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 12 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 80 mA
- Number of teach inputs:
- 1 Piece(s)
- Type:
- Teach input
- Switching voltage:
- high: ?8V,low: ? 2 V
- Input resistance:
- 15,000 ?
- Active switching state:
- High
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2V),low: ? 2 V
- Load capacity:
- 0.5 µF
- Switching principle:
- Light switching (PNP)/dark switching (NPN)
- Switching principle:
- 0 V switching
- Response time:
- 0.2 ms
- Readiness delay:
- 300 ms
- Max. conveyor speed during teach-in:
- 50 m/min
- Number of connections:
- 1 Piece(s)
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Plug outlet:
- Horizontal (parallel to belt movement)
- Design:
- Fork
- Mouth width:
- 4 mm
- Mouth depth:
- 70 mm
- Dimension (W x H x L):
- 21 mm x 49 mm x 90 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Net weight:
- 270 g
- Housing color:
- Red,Silver
- Type of fastening:
- Through-hole mounting
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Operational controls:
- Teach button
- Function of the operational control:
- Static teach on background and mark
- Ambient temperature, operation:
- 0 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- US patents:
- US 6,314,054 B
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272801
- ECLASS 8.0:
- 27272801
- ECLASS 9.0:
- 27272801
- ECLASS 10.0:
- 27272801
- ECLASS 11.0:
- 27272801
- ECLASS 12.0:
- 27272801
- ECLASS 13.0:
- 27272801
- ECLASS 14.0:
- 27272801
- ECLASS 15.0:
- 27272801
- ETIM 5.0:
- EC001847
- ETIM 6.0:
- EC001847
- ETIM 7.0:
- EC001847
- ETIM 8.0:
- EC001847
- ETIM 9.0:
- EC001847
- ETIM 10.0:
- EC001847
