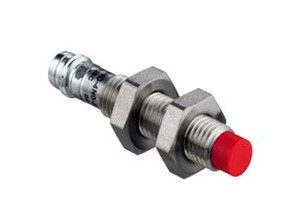

Leuze IS 208MM/4NO-4N0-S8.3 Industrial Sensor System
Leuze
$92.00
The IS 208MM/4NO-4N0-S8.3 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -25...70 °C
Typical Applications:
Standard applications include metal part detection, pneumatic cylinder position sensing, machine tool proximity switching, and limit sensing on automated equipment. The rugged all-metal housing withstands mechanical shock, coolant exposure, and vibration in machining and assembly operations.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model IS 208MM/4NO-4N0-S8.3). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 208
- type. operating range limit Sn:
- 4 mm
- Operating range Sa:
- 0 ... 3.2 mm
- Protective circuit:
- Inductive protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 20 %, From UB
- Open-circuit current:
- 0 ... 10 mA
- Temperature drift, max. (in % of Sr):
- 10 %, Over the entire operating temperature range
- Repeatability, max. (in % of Sr):
- 5 %, For UB = 20 30?V?DC, ambient temperature Ta = 23?°C ± 5?°C
- Switching hysteresis:
- 20 %
- Number of digital switching outputs:
- 1 Piece(s)
- Voltage type:
- DC
- Switching current, max.:
- 200 mA
- Residual current, max.:
- 0.1 mA
- Voltage drop:
- ? 2 V
- Switching element:
- Transistor, PNP
- Switching principle:
- NO (normally open)
- Switching frequency:
- 3,500 Hz
- Readiness delay:
- 80 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M8
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 3 -pin
- Encoding:
- A-coded
- Design:
- Cylindrical
- Dimension (Ø x L):
- 8 mm x 45 mm
- Thread size:
- M8 x 1 mm
- Type of installation:
- Non-embedded
- Housing material:
- Stainless steel
- Stainless steel housing:
- V2A
- Sensing face material:
- Plastic, Polybutylene (PBT)
- Net weight:
- 12 g
- Housing color:
- Red, RAL 3000,Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Standard measuring plate:
- 12 x 12 mm², Fe360
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4
- Standards applied:
- IEC 60947-5-2
- Aluminum:
- 0.45
- Stainless steel:
- 0.75
- Copper:
- 0.4
- Brass:
- 0.5
- Fe360 steel:
- 1
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270101
- ECLASS 8.0:
- 27270101
- ECLASS 9.0:
- 27270101
- ECLASS 10.0:
- 27270101
- ECLASS 11.0:
- 27270101
- ECLASS 12.0:
- 27274001
- ECLASS 13.0:
- 27274001
- ECLASS 14.0:
- 27274001
- ECLASS 15.0:
- 27274001
- ETIM 5.0:
- EC002714
- ETIM 6.0:
- EC002714
- ETIM 7.0:
- EC002714
- ETIM 8.0:
- EC002714
- ETIM 9.0:
- EC002714
- ETIM 10.0:
- EC002714
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
