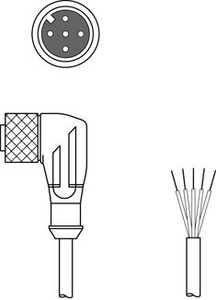

Leuze K-D M12W-5P-5m-FAB Connection cable
Leuze
$35.46
K-D M12W-5P-5m-FAB Connection cable
- Application:
- Hygienic and wet areas
- Operating voltage:
- Max. 125 V AC/DC
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Version:
- Angled
- Connector, LED:
- No
- Lock:
- Screw fitting, stainless steel V4A, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Open end
- Number of conductors:
- 5 Piece(s)
- Sheathing color:
- Black
- Shielded:
- No
- Silicone-free:
- Yes
- Cable length:
- 5,000 mm
- Sheathing material:
- PVC
- Wire insulation:
- PVC
- Suitability for drag chains:
- No
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone and lead, easily machine-processable
- Resistance of the outer sheathing:
- Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1
- Bending cycles:
- 2,000,000 Piece(s)
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Ambient temperature, operation, flexible use:
- -5 ... 70 °C
- Ambient temperature, operation, stationary use:
- -30 ... 70 °C
- Degree of protection:
- IP 65,IP 67,IP 69K
- Approvals:
- UL
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
