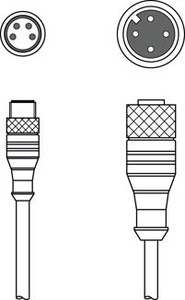

Leuze K-DS M12A-M12A-4P-0,2m-X1-PVC Industrial Sensor System
Leuze
$43.00
The K-DS M12A-M12A-4P-0,2m-X1-PVC is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Connection: M12 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model K-DS M12A-M12A-4P-0,2m-X1-PVC). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Application:
- Chemical resistant
- Type:
- Female
- Connector, LED:
- No
- Type:
- Male
- Sheathing color:
- Black
- Shielded:
- No
- Cable, crossed:
- Connection 1, pin 1 <-> connection 2, pin 3
- Cable design:
- Interconnection cable
- Cable length:
- 200 mm
- Sheathing material:
- PVC
- Suitability for drag chains:
- No
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone and lead, easily machine-processable
- Resistance of the outer sheathing:
- Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
