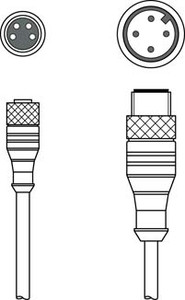

Leuze K-DS M12A-M8A-4P-0,3m-PVC Interconnection cable
Leuze
$31.28
K-DS M12A-M8A-4P-0,3m-PVC Interconnection cable
- Application:
- Chemical resistant
- Thread size:
- M12
- Type:
- Female
- Encoding:
- A-coded
- Connector, LED:
- No
- Thread size:
- M8
- Type:
- Male
- Sheathing color:
- Black
- Shielded:
- No
- Silicone-free:
- Yes
- Cable design:
- Interconnection cable
- Cable length:
- 300 mm
- Sheathing material:
- PVC
- Wire insulation:
- PVC
- Suitability for drag chains:
- No
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone and lead, easily machine-processable
- Resistance of the outer sheathing:
- Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Approvals:
- c UL US
- UL file number:
- E366145
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
