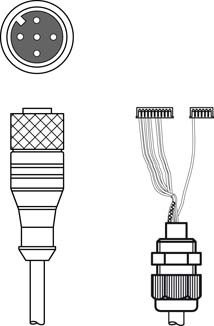

Leuze K-DS M12A-MA-5P-3m-S-PUR Industrial Sensor System
Leuze
$146.00
The K-DS M12A-MA-5P-3m-S-PUR is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Connection: M12 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model K-DS M12A-MA-5P-3m-S-PUR). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Application:
- Oil and lubricant resistant
- Operating voltage:
- 30 V AC/DC
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Connector, LED:
- No
- Type of connection:
- JST ZHR connector
- No. of pins:
- 12 -pin
- Sheathing color:
- Gray
- Shielded:
- Yes
- Cable design:
- Interconnection cable
- Cable length:
- 3,000 mm
- Sheathing material:
- PUR
- Suitability for drag chains:
- No
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
