Leuze KB M12A-8P-PC-IO-3000 Industrial Sensor System
Leuze
$262.00
The KB M12A-8P-PC-IO-3000 is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Connection: M12 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model KB M12A-8P-PC-IO-3000). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.

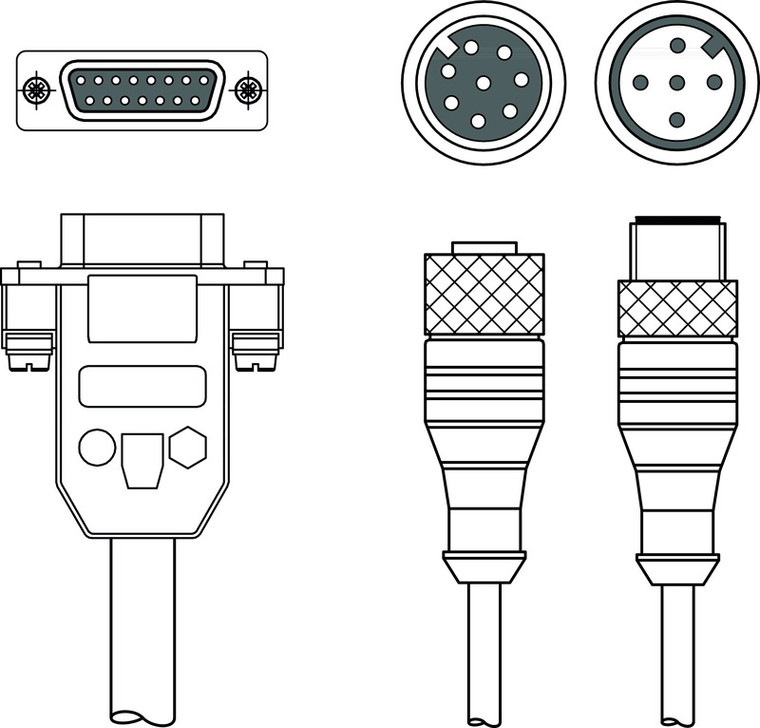

- Suitable for:
- LSIS 222 series stationary 2D-code readers
- Suitable for interface:
- RS 232
- Type of connection:
- Sub-D
- No. of pins:
- 9 -pin
- No. of pins:
- 8 -pin
- Type:
- Male
- No. of pins:
- 5 -pin
- Number of conductors:
- 8 Piece(s)
- Sheathing color:
- Black
- Shielded:
- Yes
- Cable design:
- Interconnection cable
- Cable length:
- 3,000 mm
- Sheathing material:
- PUR
- Suitability for drag chains:
- No
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
