Leuze

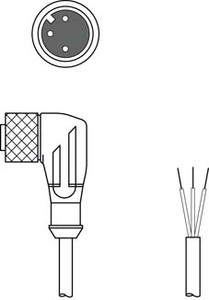

Leuze KD U-M12-3W-V1-030-DP Connection cable

SKU:

KD U-M12-3W-V1-030-DP

UPC:

MPN:

50130697

Condition:

New

Application:

Chemical resistant

Operating voltage:

24 V DC ±25%

Type of connection:

Connector

Thread size:

M12

Type:

Female

No. of pins:

3 -pin

Version:

Angled

Connector, LED:

Yes

Lock:

Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking

Type of connection:

Open end

Number of conductors:

3 Piece(s)

Sheathing color:

Black

Shielded:

No

Silicone-free:

Yes

Cable length:

3,000 mm

Sheathing material:

PVC

Wire insulation:

PVC

Suitability for drag chains:

No

Properties of the outer sheathing:

Free of CFC, cadmium, silicone and lead, easily machine-processable

Resistance of the outer sheathing:

Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1

Width across flats:

13 mm

Net weight:

120 g

Bending radius, flexible laying, min.:

Min. 10 x cable diameter

Bending radius, stationary laying, min.:

Min. 5 x cable diameter

Number of LEDs:

1 Piece(s)

Ambient temperature, operation, flexible use:

-5 ... 80 °C

Ambient temperature, operation, stationary use:

-30 ... 80 °C

Degree of protection:

IP 65,IP 67

Approvals:

c UL US

Customs tariff number:

85444290

ECLASS 5.1.4:

27279201

ECLASS 8.0:

27279218

ECLASS 9.0:

27060311

ECLASS 10.0:

27060311

ECLASS 11.0:

27060311

ECLASS 12.0:

27060311

ECLASS 13.0:

27060311

ECLASS 14.0:

27060311

ECLASS 15.0:

27060311

ETIM 5.0:

EC001855

ETIM 6.0:

EC001855

ETIM 7.0:

EC001855

ETIM 8.0:

EC001855

ETIM 9.0:

EC001855

ETIM 10.0:

EC001855
