Leuze

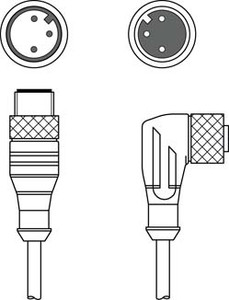

Leuze KDS U-M12-3W-M12-3A-P1-020-DP Interconnection cable

(No reviews yet) Write a Review
SKU:
KDS U-M12-3W-M12-3A-P1-020-DP
MPN:
50130770
Condition:
New
Application:
Oil and lubricant resistant
Type:
Female
Version:
Angled
Connector, LED:
Yes
Type:
Male
Version:
Axial
Sheathing color:
Black
Shielded:
No
Silicone-free:
Yes
Cable design:
Interconnection cable
Cable length:
2,000 mm
Sheathing material:
PUR
Wire insulation:
PUR
Suitability for drag chains:
Yes
Traverse rate:
Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s²
Properties of the outer sheathing:
Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable
Resistance of the outer sheathing:
Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Torsion suitability:
±180° / m (max. 2 mio. cycles with 35 cycles / min)
Width across flats:
13 mm
Net weight:
81 g
Bending cycles:
5,000,000 Piece(s)
Bending radius, flexible laying, min.:
Min. 10 x cable diameter
Bending radius, stationary laying, min.:
Min. 5 x cable diameter
Number of LEDs:
1 Piece(s)
Degree of protection:
IP 65,IP 67
Approvals:
c UL US
UL file number:
E366145
Customs tariff number:
85444290
ECLASS 5.1.4:
27279201
ECLASS 8.0:
27279218
ECLASS 9.0:
27060311
ECLASS 10.0:
27060311
ECLASS 11.0:
27060311
ECLASS 12.0:
27060311
ECLASS 13.0:
27060311
ECLASS 14.0:
27060311
ECLASS 15.0:
27060311
ETIM 5.0:
EC001855
ETIM 6.0:
EC001855
ETIM 7.0:
EC001855
ETIM 8.0:
EC001855
ETIM 9.0:
EC001855
ETIM 10.0:
EC001855
Datasheet:
View
Brochure:
View
Declaration of Conformity:
View
$27.00
