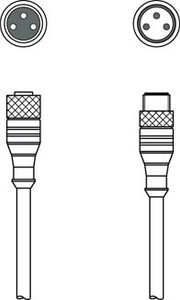

Leuze KDS U-M8-3A-M8-3A-P1-006-DP Industrial Sensor System
Leuze
$35.00
The KDS U-M8-3A-M8-3A-P1-006-DP is a precision industrial sensor engineered for demanding automation applications. Featuring IP66 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP66 (dust-protected, water-resistant)
Connection: M8 quick-disconnect connector
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model KDS U-M8-3A-M8-3A-P1-006-DP). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Application:
- Oil and lubricant resistant
- Type:
- Female
- Connector, LED:
- Yes
- Type:
- Male
- Sheathing color:
- Black
- Shielded:
- No
- Silicone-free:
- Yes
- Cable design:
- Interconnection cable
- Cable length:
- 600 mm
- Sheathing material:
- PUR
- Wire insulation:
- PUR
- Suitability for drag chains:
- Yes
- Traverse rate:
- Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s²
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable
- Resistance of the outer sheathing:
- Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Torsion suitability:
- ±180° / m (max. 2 mio. cycles with 35 cycles / min)
- Width across flats:
- 9 mm
- Net weight:
- 25 g
- Bending cycles:
- 5,000,000 Piece(s)
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Number of LEDs:
- 1 Piece(s)
- Degree of protection:
- IP 66K,in the plugged-in and screwed-down state (EN 60529),IP 67
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
