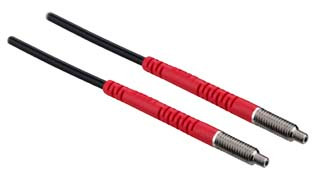

Leuze KFX-LH-420 Industrial Sensor System
Leuze
$291.00
The KFX-LH-420 is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Operating temperature: -55...105 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model KFX-LH-420). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- KFX
- Operating principle:
- Throughbeam principle
- Device type:
- Transmit and receive fiber
- Area of application:
- General applications
- Special version:
- Heat resistant
- Light beam exit:
- Front
- Fiber core:
- Single fiber core
- Fiber core material:
- Plastic
- aktiver Faserdurchmesser:
- 1 mm
- Operating range with LV461:
- 0 ... 300 mm
- Operating range with LV462:
- 0 ... 525 mm
- Operating range with LV463:
- 0 ... 900 mm
- Operating range with LV463.XV:
- 0 ... 1,350 mm
- Operating range with LV463.XR:
- 0 ... 1,620 mm
- Operating range with LV463I.XR:
- 0 ... 2,430 mm
- Minimum object diameter:
- 0.5 mm
- Design:
- Cylindrical
- Outer diameter:
- 2.2 mm
- Head material:
- Stainless steel
- Type:
- Plastic fiber optics with bend protection (KFX)
- Fiber length:
- 2,000 mm
- Fiber sheathing material:
- PE
- Fastening of the probe:
- M4 x 0.7 mm
- Smallest bending radius (moving):
- R25
- Sleeve length at optical outlet:
- 13 mm
- Metric thread on fiber optic sleeve:
- Yes
- Laying:
- standard
- Damping at ?:
- 650nm=210 dB/km
- Ambient temperature, operation:
- -55 ... 105 °C
- Customs tariff number:
- 90011090
- ECLASS 5.1.4:
- 27270905
- ECLASS 8.0:
- 27270905
- ECLASS 9.0:
- 27270905
- ECLASS 10.0:
- 27270905
- ECLASS 11.0:
- 27273606
- ECLASS 12.0:
- 27273606
- ECLASS 13.0:
- 27273606
- ECLASS 14.0:
- 27273606
- ECLASS 15.0:
- 27273606
- ETIM 5.0:
- EC002651
- ETIM 6.0:
- EC002651
- ETIM 7.0:
- EC002651
- ETIM 8.0:
- EC002651
- ETIM 9.0:
- EC002651
- ETIM 10.0:
- EC002651
- Datasheet:
- View
