Description

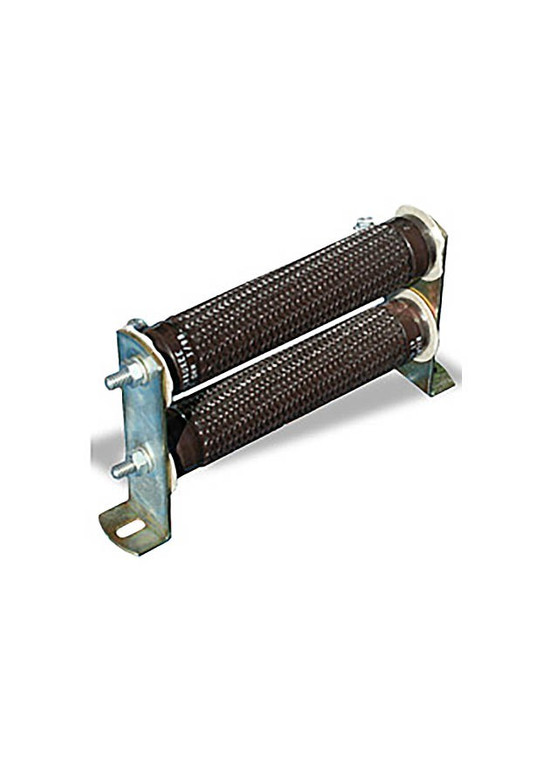

DB Resistor w/ Mounting Bracket. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filter ideal for European Community Compliance. It is available in power ranges from 0.33 Hp...30 Hp (0.25 kW...22.0 kW) with global voltages from 120 VAC through 600 VAC.
View AllClose
AC Drive, 2hp, 480-600V, 3 Phase, NEMA 4X Indoor/Outdoor, Washdown Duty
| Product Series | SMV |
|---|---|
| Input Voltage | 480/600V, 3 Phase |
| Horsepower | 2 hp |
| Output | 3 Phase Output |
| Housing/Enclosure | NEMA 4/4X (IP66) |
| Type of Drive | Volts per Hertz (V/Hz) |
| Options | Outdoor Duty |
| Product Series | SMVector NEMA 4X Outdoor |
| Warranty | 2 Years |
| Weight - lbs. | 6.7000 |
Rated Input Voltage
- 480-600V 10%
- 3 phase
- 50/60Hz 2Hz
Rated Output Current
- 240VAC
- 3 phase
- 2.7 amps
Dimensions
- Height: 7.52 in
- Width: 3.90 in
- Depth: 5.45 in
Weight
- 5 lbs
Housing
- NEMA 1/4X
