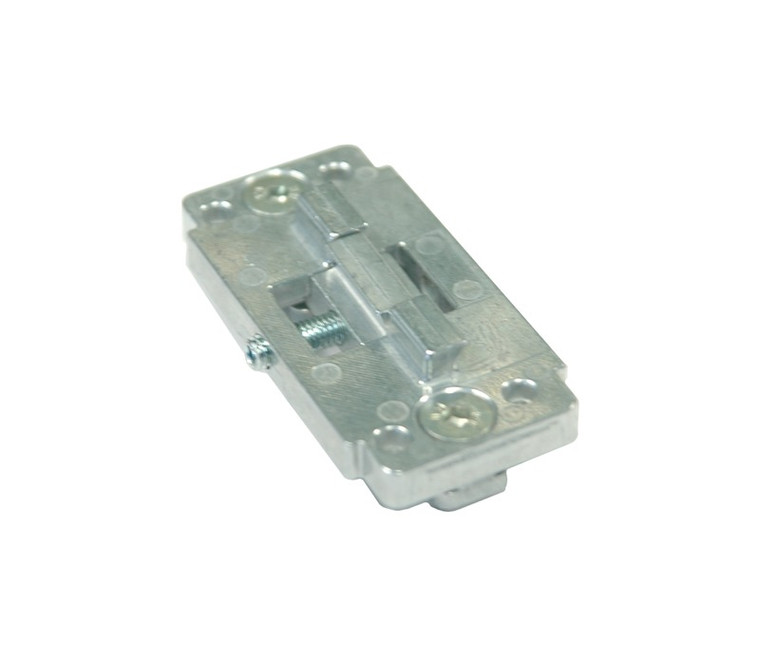

The Leuze BT-P45 is a metal mounting clamp designed for secure installation of ELC100 safety light curtains, with compatibility for UDC-S2 and DC-S2 device columns. It features M6 diameter bore holes for both system and device fastening via groove mounting, enabling clampable attachment. Net weight is 100 g, supporting robust applications in industrial safety setups.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/bt-p45/424438
- Product Data Sheet (PDF): https://pim.galco.com/Manufacturer/Leuze/TechDocument/Data%20Sheet/DS_BT-P45_eng_424438.pdf
- Dimensioned Drawings: https://www.leuze.com/en-us/downloads/bt-p45
- Installation Guide: https://www.leuze.com/en-us/support/manuals/bt-p45
- Contains:
- 1x BT-P45
- Suitable for product group:
- Safety light curtains
- Suitable for:
- ELC100 safety light curtains,Suitable for mounting in UDC-S2, DC-S2 device columns
- Bore hole 1, diameter:
- M6
- Bore hole 2, diameter:
- M6
- Design of mounting device:
- Mounting clamp
- Type of fastening, at system:
- Groove mounting
- Type of fastening, at device:
- Groove mounting
- Type of mounting device:
- Clampable
- Mounting device material:
- Metal
- Customs tariff number:
- 73182900
- ECLASS 5.1.4:
- 27279202
- ECLASS 8.0:
- 27279202
- ECLASS 9.0:
- 27273701
- ECLASS 10.0:
- 27273701
- ECLASS 11.0:
- 27273701
- ECLASS 12.0:
- 27273701
- ECLASS 13.0:
- 27273701
- ECLASS 14.0:
- 27273701
- ECLASS 15.0:
- 27273701
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
