Leuze

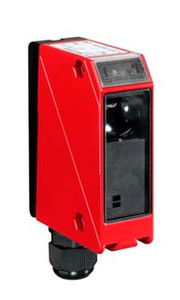

Leuze LSS 96K-1350-26 Throughbeam photoelectric sensor transmitter

SKU:

LSS 96K-1350-26

UPC:

MPN:

50025253

Condition:

New

Series:

96

Operating principle:

Throughbeam principle

Device type:

Transmitter

Operating range:

0 ... 50 m

Operating range:

Guaranteed operating range

Operating range limit:

0 ... 65 m

Operating range limit:

Typical operating range

Light source:

LED, Infrared

Supply voltage UB:

20 ... 230 V, AC/DC

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 50 mA

Type of connection:

Terminal

No. of pins:

2 -pin

Dimension (W x H x L):

30 mm x 90 mm x 70 mm

Housing material:

Plastic

Plastic housing:

PC

Lens cover material:

Plastic

Net weight:

150 g

Note:

Housing part used contains perfluorobutanesulfonic acid (PFBS)

Type of display:

LED

Ambient temperature, operation:

-40 ... 55 °C

Degree of protection:

IP 67

Protection class:

II

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365080

ECLASS 5.1.4:

27270901

ECLASS 8.0:

27270901

ECLASS 9.0:

27270901

ECLASS 10.0:

27270901

ECLASS 11.0:

27270901

ECLASS 12.0:

27270901

ECLASS 13.0:

27270901

ECLASS 14.0:

27270901

ECLASS 15.0:

27270901

ETIM 5.0:

EC002716

ETIM 6.0:

EC002716

ETIM 7.0:

EC002716

ETIM 8.0:

EC002716

ETIM 9.0:

EC002716

ETIM 10.0:

EC002716

Datasheet:

View

Declaration of Conformity:

View
