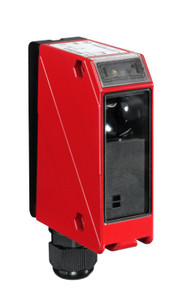

Leuze LSS 96K-1070-43 Throughbeam photoelectric sensor transmitter
Leuze
$654.13
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze LSS 96K-1070-43 Throughbeam photoelectric sensor transmitter
LSS 96K-1070-43 Throughbeam photoelectric sensor transmitter
- Series:
- 96
- Operating principle:
- Throughbeam principle
- Device type:
- Transmitter
- Operating range:
- 0 ... 50 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 65 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Infrared
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 50 mA
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Plastic
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 150 g
- Note:
- Housing part used contains perfluorobutanesulfonic acid (PFBS)
- Type of display:
- LED
- Ambient temperature, operation:
- -40 ... 55 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
- Declaration of Conformity:
- View
