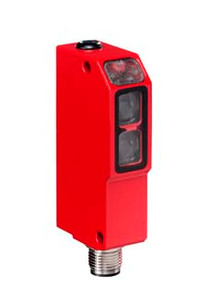

Leuze FRK 93/44-60.2 Industrial Sensor System
Leuze
$1,057.00
The FRK 93/44-60.2 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LED, infrared emission
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -20...60 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model FRK 93/44-60.2). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 93
- Operating principle:
- Diffuse reflection principle with background suppression
- Special version:
- V-optics
- Operating range:
- 0.03 ... 0.065 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0.03 ... 0.07 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Infrared
- Type of light spot geometry:
- Round
- Focus:
- Fixed
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching
- Switching principle:
- Dark switching
- Switching frequency:
- 1,000 Hz
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Number of conductors:
- 5 -wire
- Dimension (W x H x L):
- 20 mm x 60 mm x 45.8 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 170 g
- Ambient temperature, operation:
- -20 ... 60 °C
- Degree of protection:
- IP 65
- Protection class:
- I
- Approvals:
- c UL US
- Standards applied:
- EN 60947-5-2 (German version)
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
- Datasheet:
- View
