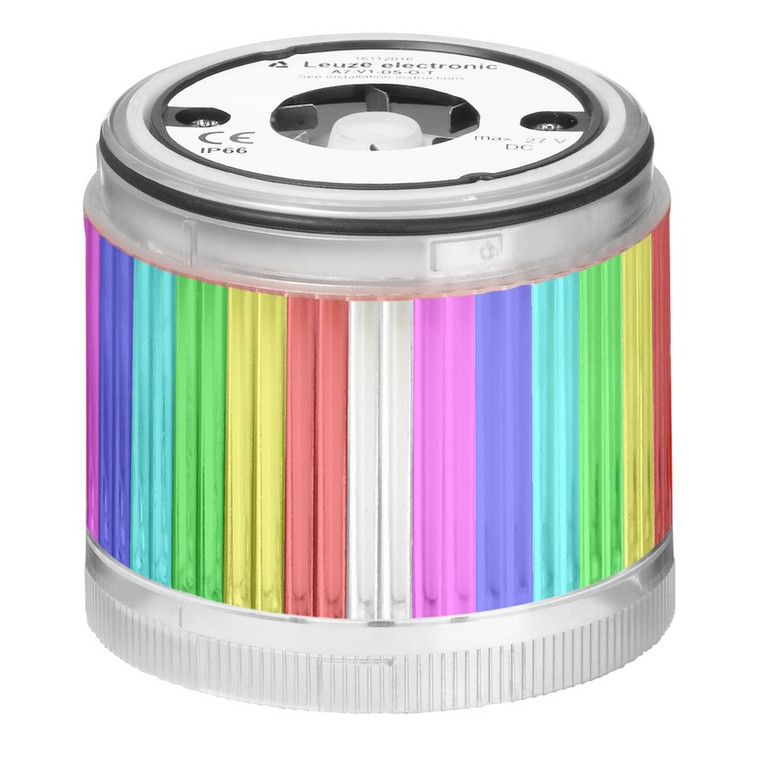

Leuze A7-V1-MP1-DS-M7-T-100 Tower light
Leuze
$136.00
The Leuze A7-V1-MP1-DS-M7-T-100 is a pre-assembled cylindrical tower light from the A7 series, featuring a multicolor DS-M7 lens module capable of displaying seven distinct colors via 24V DC LED illumination with pin-specific actuation for flexible calotte positioning. It utilizes tension spring terminal connections for secure wiring, supports screw-type horizontal or base mounting with M5 screws (2 Nm torque), and measures 70 mm Ø with a length of approximately 200300 mm depending on configuration, constructed from robust PC-ABS plastic housing (black/gray) weighing around 300 g. Rated for -10 to 60 °C operation and IP66 protection when mounted on compatible enclosures, it holds CE and CSA approvals, making it suitable for industrial signaling in manufacturing environments requiring 360° visibility and continuous, intermittent, or flashing light modes.
- Series:
- A7
- Type of signaling:
- Optical
- Life expectancy:
- > 100,000 h
- Supply voltage UB:
- 24 V, DC, 10 %
- Current consumption, max.:
- 70 mA
- Number of connections:
- 2 Piece(s)
- Notes:
- Protected against accidental interchanges: Actuation of the colors is performed via PINs, thus, the calotte position can be freely selected (see operating instructions).,The individual colors are actuated via VCC (PNP)
- Function:
- Light color programmable via actuation of wires,Voltage supply
- Type of connection:
- Cable, soldered to lens / open end
- Cable length:
- 1,500 mm
- Number of conductors:
- 6 -wire
- Design:
- Cylindrical
- Dimension (Ø x L):
- 70 mm x 203 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Aluminum
- Plastic housing:
- PC-ABS
- Net weight:
- 313 g
- Housing color:
- Black,Gray
- Type of fastening, at system:
- Screw type / horizontal
- Type of illuminant:
- LED/24V
- Lens modules:
- 1 piece
- Signal image:
- Continuous or flashing light
- Angle of radiation:
- 360°
- Ambient temperature, operation:
- -10 ... 60 °C
- Degree of protection:
- IP 66, Only when mounted on a housing with the same degree of protection
- Approvals:
- CE,CSA
- Customs tariff number:
- 85318070
- ECLASS 5.1.4:
- 27371230
- ECLASS 8.0:
- 27371230
- ECLASS 9.0:
- 27371220
- ECLASS 10.0:
- 27371230
- ECLASS 11.0:
- 27371230
- ECLASS 12.0:
- 27371230
- ECLASS 13.0:
- 27371230
- ECLASS 14.0:
- 27371230
- ECLASS 15.0:
- 27371230
- ETIM 5.0:
- EC001042
- ETIM 6.0:
- EC001042
- ETIM 7.0:
- EC001042
- ETIM 8.0:
- EC001042
- ETIM 9.0:
- EC001042
- ETIM 10.0:
- EC001042
