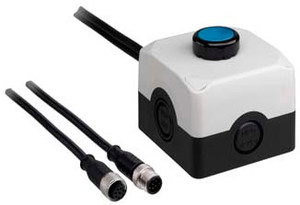

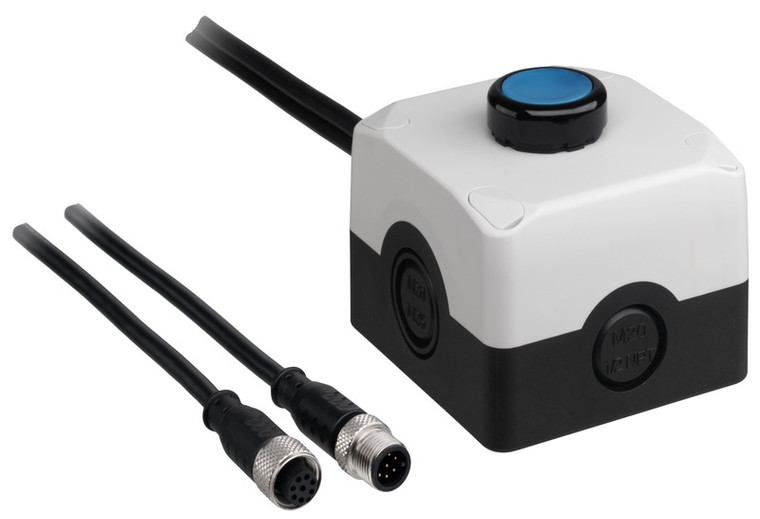

AC-ABF70.INV.BB Acknowledgment unit
- Suitable for:
- MLC 500, MLC 300 safety light curtains,MLD 500, MLD 300 multiple light beam safety devices
- Functions:
- Illuminated reset buttons,Overriding with AOPDs with muting function,Reset of the start/restart interlock
- Reset buttons:
- Yes
- LED indicators:
- Yes
- Switching current via button:
- 1 ... 1,000 mA
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %
- Number of connections:
- 2 Piece(s)
- Function:
- Connection to device
- Cable length:
- 5,000 mm
- Type:
- Male
- Function:
- Connection with PLC
- Cable length:
- 200 mm
- Dimension (W x H x L):
- 72 mm x 56 mm x 80 mm
- Plastic housing:
- Glass fiber reinforced (PPS), self-extinguishing
- Net weight:
- 250 g
- Housing color:
- Black,Gray
- Clamping plate material:
- Stainless steel
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- III
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27279290
- ECLASS 8.0:
- 27279290
- ECLASS 9.0:
- 27279090
- ECLASS 10.0:
- 27371246
- ECLASS 11.0:
- 27371246
- ECLASS 12.0:
- 27371246
- ECLASS 13.0:
- 27371246
- ECLASS 14.0:
- 27371246
- ECLASS 15.0:
- 27371246
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
